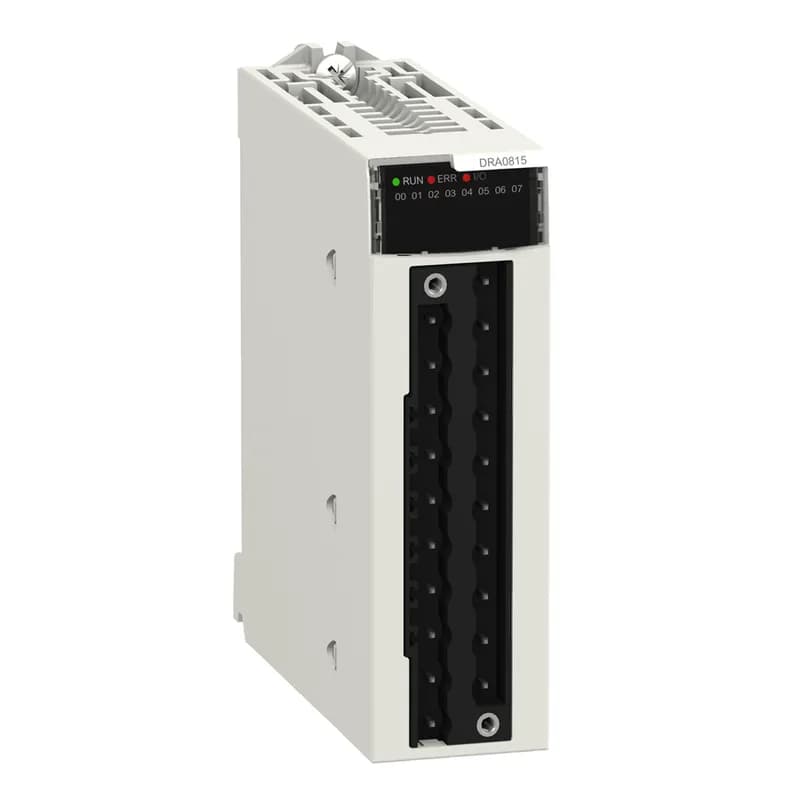

Schneider Electric BMXDRA0815

Schneider BMXDRA0815 Modicon X80 Relay Output 8CH

MPNBMXDRA0815
Active

Schneider Electric Modicon X80 BMXDRA0815, 8-channel relay output module, 24-240 V AC / 24-125 V DC, 3 A thermal current.

$181.61 – $369.00Ref. price · indicative, final on quote
Schneider Electric BMXDRA0815 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDRA0815 key specifications
ParameterValue
Protection typeExternal short-circuit protection External overload protection External overvoltage protection, inductive AC network External overvoltage protection, inductive DC network
Range of productModicon X80
Discrete output typeRelay
Product or component typeRelay discrete output module
Discrete output voltage24...240 V 19...264 V AC 24...125 V 5...150 V DC
Minimum switching current1 mA 5 V DC
Typical current consumption40 mA at 3.3 V DC 101 mA at 24 V DC
Output short-circuit protectionUse 1 fast blow fuse per channel or group of channel
[Ith] conventional free air thermal current3 A
Sensor power supply5...150 V 19...264 V
Power dissipation in3.6 W
Network frequency50/60 Hz

All specifications

BMXDRA0815 additional specifications
ParameterValue
Network frequency limits47...63 Hz
IP degree of protectionIP20
Electrical connection20 ways terminal block
Response time on output<= 13 ms deactivation
Shock resistance30 gn
Relative humidity5...95 % at 60 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability3200000 H
Electrical durabilityAC-12: 200000 cycles at 48 VA 24 V at 0...60 °C AC-12: 300000 cycles at 48 VA 48 V at 0...60 °C AC-12: 150000 cycles at 96 VA 48 V at 0...60 °C AC-12: 300000 cycles at 110 VA 100...120 V at 0...60 °C AC-12: 150000 cycles at 220 VA 100...120 V at 0...60 °C AC-12: 300000 cycles at 220 VA 200...250 V at 0...60 °C AC-12: 150000 cycles at 500 VA 200...250 V at 0...60 °C AC-15: 700000 cycles at 10 VA 24 V at 0...60 °C (load factor 0.4) AC-15: 500000 cycles at 24 VA 24 V at 0...60 °C (load factor 0.4) AC-15: 200000 cycles at 48 VA 24 V at 0...60 °C (load factor 0.4) AC-15: 700000 cycles at 10 VA 48 V at 0...60 °C (load factor 0.4) AC-15: 500000 cycles at 24 VA 48 V at 0...60 °C (load factor 0.4) AC-15: 300000 cycles at 48 VA 48 V at 0...60 °C (load factor 0.4) AC-15: 100000 cycles at 96 VA 48 V at 0...60 °C (load factor 0.4) AC-15: 1000000 cycles at 10 VA 100...120 V at 0...60 °C (load factor 0.4) AC-15: 300000 cycles at 50 VA 100...120 V at 0...60 °C (load factor 0.4) AC-15: 200000 cycles at 110 VA 100...120 V at 0...60 °C (load factor 0.4) AC-15: 70000 cycles at 220 VA 100...120 V at 0...60 °C (load factor 0.4) AC-15: 1000000 cycles at 10 VA 200...250 V at 0...60 °C (load factor 0.4) AC-15: 500000 cycles at 50 VA 200...250 V at 0...60 °C (load factor 0.4) AC-15: 200000 cycles at 110 VA 200...250 V at 0...60 °C (load factor 0.4) AC-15: 150000 cycles at 220 VA 200...250 V at 0...60 °C (load factor 0.4) DC-12: 200000 cycles at 24 W 24 V at 0...60 °C DC-12: 150000 cycles at 48 W 24 V at 0...60 °C DC-12: 150000 cycles at 40 W 48...60 V at 0...60 °C DC-12: 100000 cycles at 45 W 100...125 V at 0...60 °C DC-13: 100000 cycles at 10 W 24 V at 0...60 °C DC-13: 60000 cycles at 24 W 24 V at 0...60 °C DC-13: 40000 cycles at 48 W 24 V at 0...60 °C DC-13: 40000 cycles at 40 W 48...60 V at 0...60 °C DC-13: 100000 cycles at 15 W 100...125 V at 0...60 °C
Status LED1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O
Dielectric strength1780 V AC at 50/60 Hz 1 min
Protective treatmentStandard version
Discrete output logicPositive
Insulation resistance> 10 MOhm 500 V DC
Discrete output number8 conforming to IEC 61131-2
Output overload protectionUse 1 fast blow fuse per channel or group of channel
Output overvoltage protectionUse discharge diode on each output DC Use RC circuit on each output AC Use ZNO surge limiter on each output AC
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C

Product details

The BMXDRA0815: Eight relay outputs in a single Modicon X80 slice, rated for 3 A continuous per common pole and switching 24-240 V AC or 24-125 V DC. The module fits a standard X80 backplane slot and draws 101 mA at 24 V DC plus 40 mA from the 3.3 V rail.

Protection and diagnostics

The module does not include internal overcurrent or overvoltage protection; each output channel needs a fast-blow fuse for short-circuit and overload protection, plus a flyback diode (DC) or RC snubber (AC) for inductive loads. Status feedback runs through four front-panel LEDs: a green RUN, a red ERR, a red I/O, and a green channel-diagnostic LED per output.

Output endurance and reliability

Electrical durability cycles per load type are listed in the spec table. MTBF is 3200000 H and insulation resistance > 10 MOhm at 500 V DC. Deactivation response time ≤ 13 ms.

Frequently asked questions

What protection does the BMXDRA0815 require on each output?

External short-circuit and overload protection via a fast-blow fuse per channel or group, plus a flyback diode for DC loads or an RC snubber/ZNO limiter for AC loads.

What diagnostics are available via the front LEDs?

A green RUN LED, a red ERR bus/ module fault LED, a red I/O channel fault LED, and a green channel-diagnostic LED per output.
