Schneider Electric BMXDRA1605

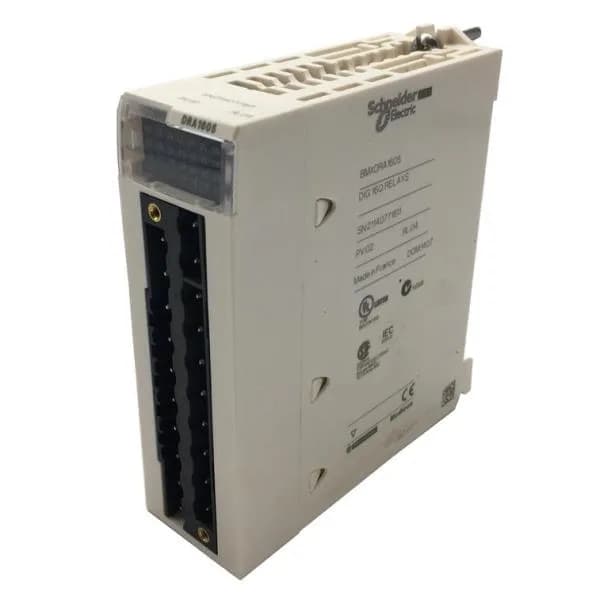

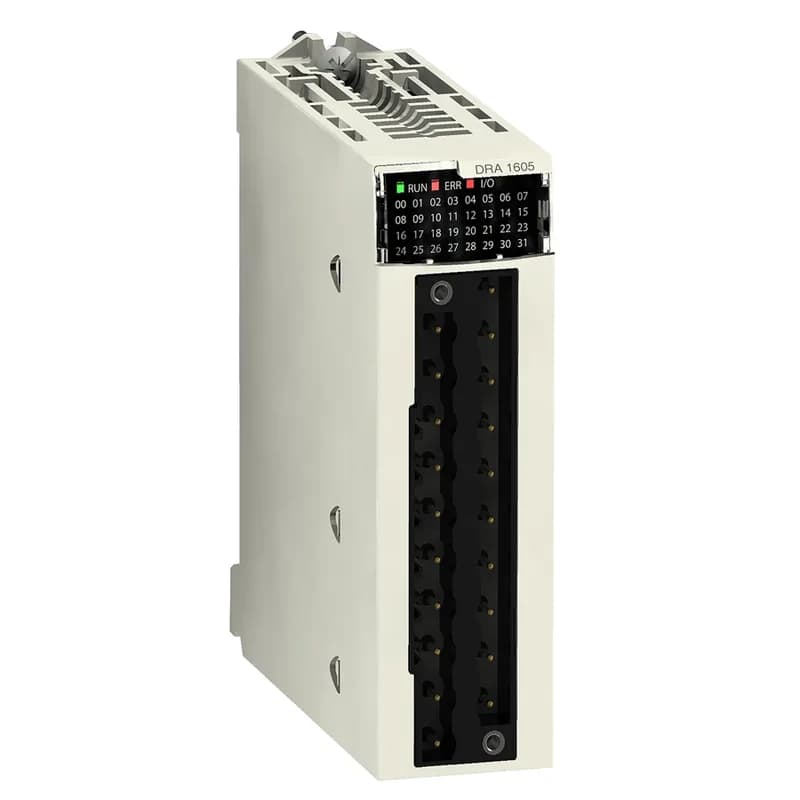

BMXDRA1605 Modicon X80 16-Relay Output Module, Active

MPNBMXDRA1605
Active

Schneider Electric Modicon X80 discrete output module, BMXDRA1605, 16 normally open relay outputs, 24-240 V AC / 24-48 V DC, 2 A thermal current.

$184.15 – $419.00Ref. price · indicative, final on quote
Schneider Electric BMXDRA1605 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDRA1605 key specifications
ParameterValue
Range of productModicon X80
Discrete output typeRelay
Product or component typeDiscrete output module
Discrete output voltage24...48 V 19...60 V DC 24...240 V 19...264 V AC
Minimum switching current1 mA 5 V DC
Typical current consumption100 mA at 3.3 V DC 95 mA at 24 V DC
Output short-circuit protectionUse 1 fast blow fuse per channel or group of channel
[Ith] conventional free air thermal current2 A
Power dissipation in3 W
IP degree of protectionIP20
Response time on output< 8 ms activation < 10 ms deactivation
Shock resistance30 gn

All specifications

BMXDRA1605 additional specifications
ParameterValue
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability2100000 H
Electrical durabilityAC-15: 100000 cycles at 240 VA 200 V (load factor 0.7) AC-15: 100000 cycles at 120 VA 200 V (load factor 0.35) AC-12: 100000 cycles at 200 VA 100 V AC-12: 100000 cycles at 80 VA 48 V AC-12: 100000 cycles at 50 VA 24 V AC-15: 100000 cycles at 120 VA 100 V AC-15: 100000 cycles at 120 VA 24 V AC-15: 100000 cycles at 120 VA 48 V DC-12: 100000 cycles at 24 W 24 V DC-13: 100000 cycles at 10 W 24 V DC-13: 100000 cycles at 10 W 48 V AC-15: 300000 cycles at 72 VA 200 V (load factor 0.7) AC-15: 300000 cycles at 36 VA 200 V (load factor 0.35) AC-12: 300000 cycles at 200 VA 200 V AC-12: 300000 cycles at 80 VA 100 V AC-12: 300000 cycles at 50 VA 48 V AC-15: 300000 cycles at 36 VA 100 V AC-15: 300000 cycles at 72 VA 100 V AC-15: 300000 cycles at 36 VA 48 V AC-15: 300000 cycles at 72 VA 48 V AC-15: 300000 cycles at 36 VA 24 V AC-15: 300000 cycles at 72 VA 24 V DC-13: 300000 cycles at 3 W 24 V DC-13: 300000 cycles at 3 W 48 V DC-13: 7000 cycles at 24 W 24 V DC-13: 7000 cycles at 24 W 48 V DC-12: 50000 cycles at 24 W 48 V
Status LED1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O
Dielectric strength2000 V AC at 50/60 Hz 1 min
Protective treatmentStandard version
Discrete output logicPositive
Insulation resistance> 10 MOhm 500 V DC
Discrete output number16 conforming to IEC 61131-2
Output overload protectionUse 1 fast blow fuse per channel or group of channel
Output overvoltage protectionUse discharge diode on each output DC Use RC circuit on each output AC Use ZNO surge limiter on each output AC
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation0...60 °C

Product details

Ratings that matter for sizing

The BMXDRA1605: Minimum switching current is 1 mA at 5 V DC — the relay can handle low-power signals, not just motor or lamp loads. Response times clock in under 8 ms activation and under 10 ms deactivation, adequate for most valve and contactor sequences. Electrical durability is specified across AC-15, AC-12, DC-12, and DC-13 categories, with 100,000 cycles typical at common voltage/VA combinations and up to 300,000 cycles at reduced loads. Power dissipation totals 3 W for the module.

Installation notes

Typical current consumption is 100 mA from the 3.3 V backplane and 95 mA from the 24 V field supply. Each output requires an external fast-blow fuse for short-circuit and overload protection; use a free-wheeling diode across DC loads and an RC snubber across AC loads to suppress overvoltage. LEDs provide per-channel green channel diagnostics plus a red ERR and red I/O fault indication — no need for external annunciators.

Frequently asked questions

What are the response times?

Activation time is under 8 ms; deactivation under 10 ms.

What protection is built in?

No built-in short-circuit or overload protection; each channel or group requires an external fast-blow fuse. For overvoltage suppression, use a discharge diode on DC outputs and an RC circuit or ZNO limiter on AC outputs.

MPN
BMXDRA1605
