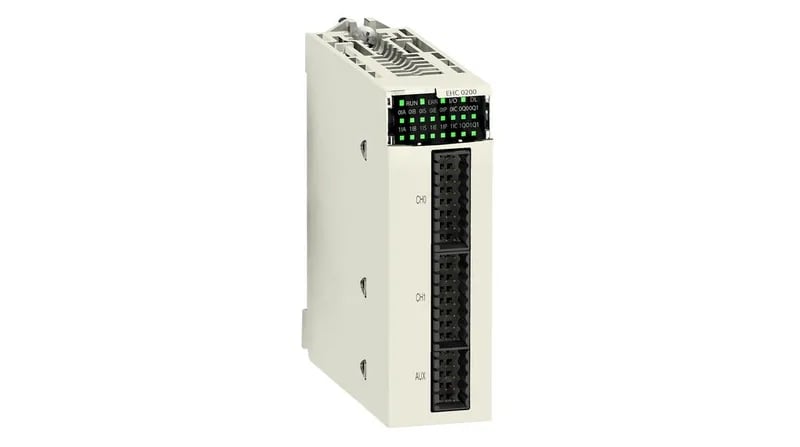

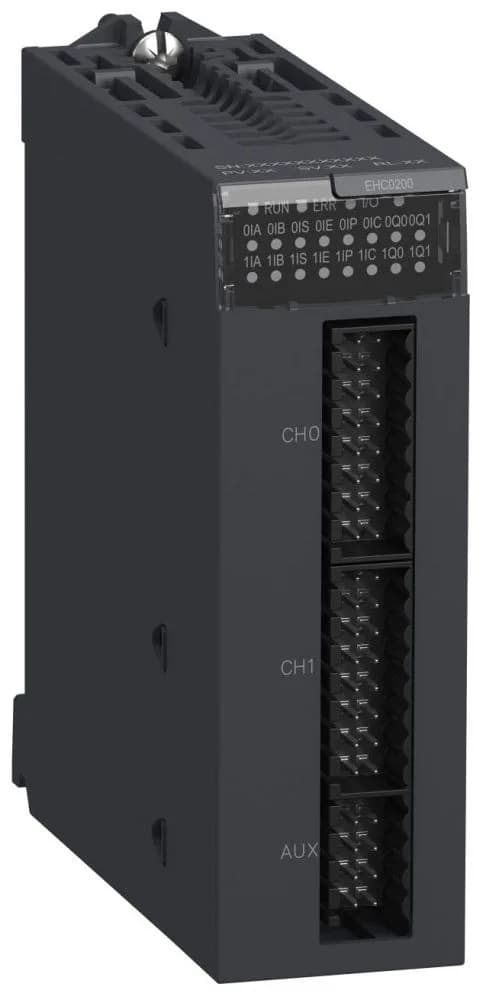

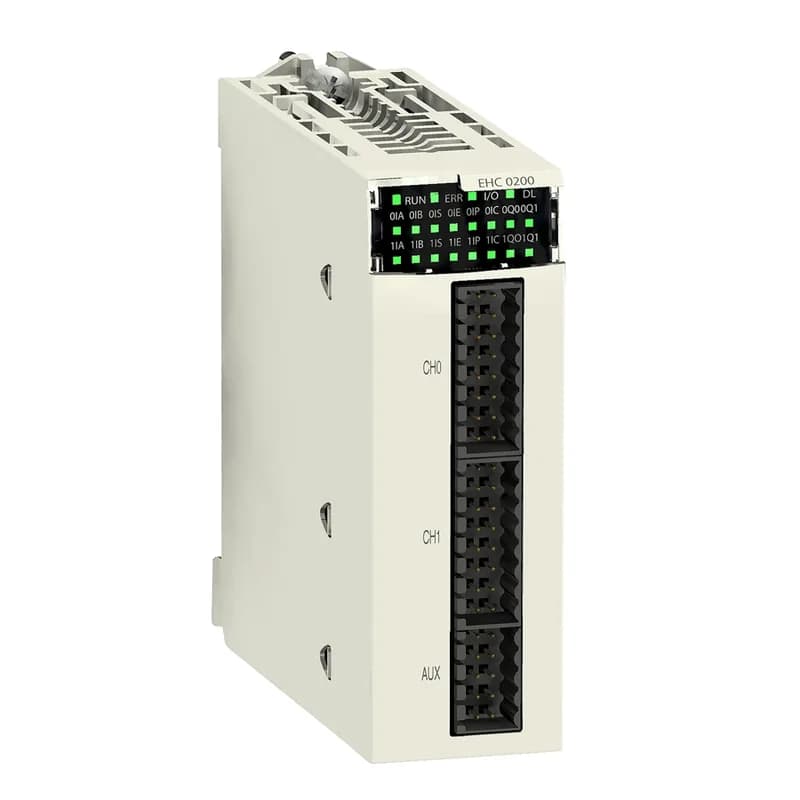

Schneider BMXEHC0200 Counter Module, 2-Ch 60kHz

Name: BMXEHC0200
Brand: Schneider Electric
SKU: BMXEHC0200
Availability: LimitedAvailability
Author: Liquidation Lev

MPNBMXEHC0200

Active

Schneider Electric Modicon M340, counter module, 2 channels high speed, 60 kHz max counting frequency, 6 inputs, 2 outputs, 24 V DC, IP20.

$237.49 – $588.50Ref. price · indicative, final on quote

Request quote

Schneider Electric BMXEHC0200 datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

BMXEHC0200 key specifications
Parameter	Value
Input type	3 auxiliary input 3 high speed
Range of product	Modicon M340 automation platform
Product or component type	Counter module
Input voltage	24 V DC type 3
Output voltage	24 V DC
Isolation voltage	1500 V for 60 s
Input voltage limits	30 V
Maximum voltage drop	<3 V at state 1
Output voltage limits	19.2...30 V
Voltage state 0 guaranteed	< 5 V
Voltage state 1 guaranteed	11...30 V
Input current	2 mA at 11 V

All specifications

BMXEHC0200 additional specifications
Parameter	Value
Current consumption	200 mA at 3.3 V DC bus 40 mA at 24 V DC rack 80 mA at 24 V DC sensor
Maximum load current	1 A per module 0.5 A per output
Maximum output current	2 A per module 0.5 A per output
Maximum leakage current	0.1 mA at state 0
Current state 0 guaranteed	<= 1.5 mA
Current state 1 guaranteed	>= 6 mA
Output short-circuit protection	1.5 A integrated
Maximum counting frequency	60000 Hz
I/O channels	6
IP degree of protection	IP20
Electrical connection	1 connector with 10 pins for wiring auxiliary input and sensor power supply 1 connector with 16 pins for wiring the sensors of counter 0 1 connector with 16 pins for wiring the sensors of counter 1
Relative humidity	10...95 % without condensation
Cycle time	1 ms
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Overlap time	0.2 ms
Module format	Standard
Counter functions	Loop (modulo) counting Width modulation Down counting Measure time periods Ratio count Count events 32-bit counter counting Frequency meter
Channels	2
Input compatibility	19.2...30 V 2-wire/3-wire proximity sensor incremental encoder with push-pull outputs, 10...30 V totem pole
Protective treatment	Standard version
Discrete output logic	Positive or negative configurable
Output overload protection	Integrated
Ambient air temperature for operation	0...60 °C

Product details

Module fit and constraints

BMXEHC0200 is a 2-channel high-speed counter module for the Modicon M340 rack. It ticks at a 1 ms cycle time and handles up to 60 kHz per channel, so it's built for incremental encoders, frequency meters, or event counting where you need sub-millisecond update. The 6 inputs split as 3 auxiliary + 3 high-speed, plus 2 outputs that can sink 0.5 A each (1 A total per module). Inputs accept 24 V DC type 3 proximity sensors or push-pull encoders up to 30 V. Power budget: it pulls 200 mA from the 3.3 V bus, 40 mA from the 24 V rack supply, and 80 mA from the 24 V sensor supply — ensure your rack power module can cover that if you're loading multiple M340 I/O slices.
