Schneider Electric BMXFTA302 — PLC I/O & Expansion Modules

Schneider BMXFTA302 Modicon X80 Preformed Cordset, 3 m

MPNBMXFTA302
Active

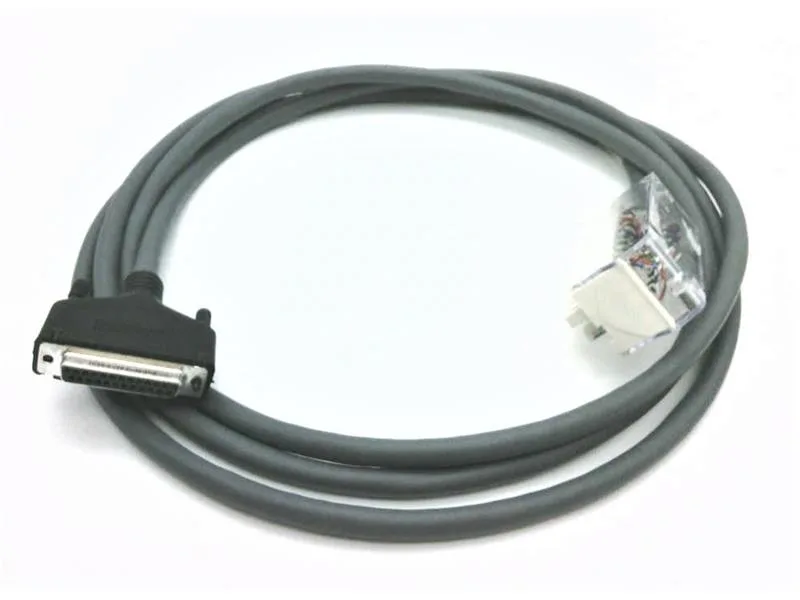

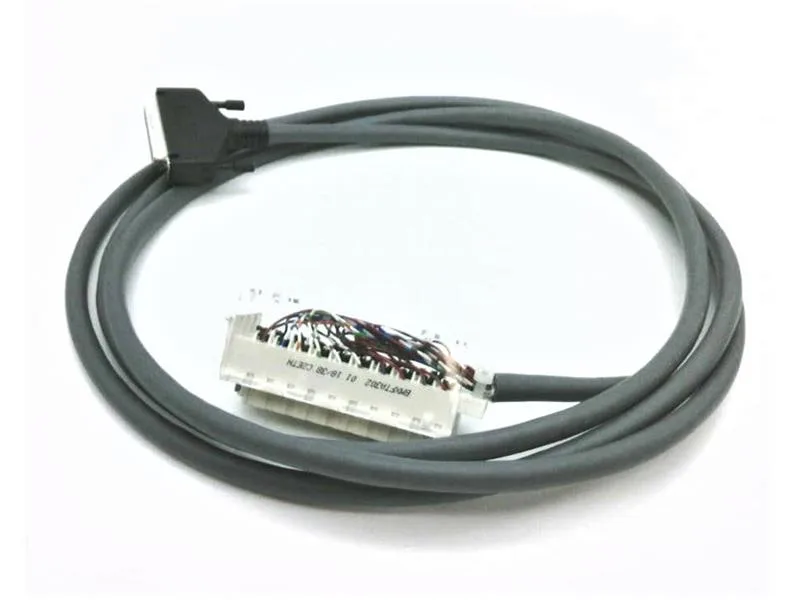

Schneider Electric Modicon X80 preformed cordset, BMXFTA302, 3 m, SUB-D25 to 20-way terminal block.

$53.34Ref. price · indicative, final on quote
Schneider Electric BMXFTA302 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

BMXFTA302 — Specifications
ParameterValue
Cable length3 m
Range of productModicon X80
Electrical connection1 connector SUB-D 25 for sub-base side 1 removable terminal block, 20 ways for module side
Accessory (separate part type)Preformed cordset

Product details

Preformed cable between rack and field wiring

The Schneider BMXFTA302 is a factory-terminated cordset for Modicon X80 I/O modules. One end carries a SUB-D 25 connector for the module's sub-base; the other is a removable 20-way terminal block for field wiring. The 3 m length gives enough slack for most cabinet layouts while keeping cable manageability simple.

What the connector pair means on site

The SUB-D 25 connector mates to the X80 module's sub-base. The 20-way terminal block connects field wiring.

Sourcing posture for this line item

BMXFTA302 is a standard active SKU. Lead times are routine, quoted to order. No surplus or broker channel required. If you are specifying the BOM, this is a straightforward line; no substitution watch needed.

Frequently asked questions

What is the cable length of the BMXFTA302?

The BMXFTA302 is a 3 m preformed cordset.

What connectors does the BMXFTA302 use?

One end is a SUB-D 25 connector for the module side; the other is a removable 20-way terminal block for field wiring.
