Schneider Electric BMXNOC0401

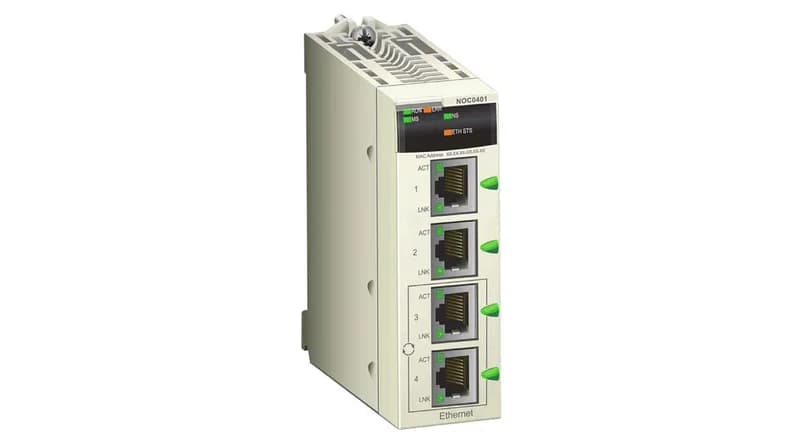

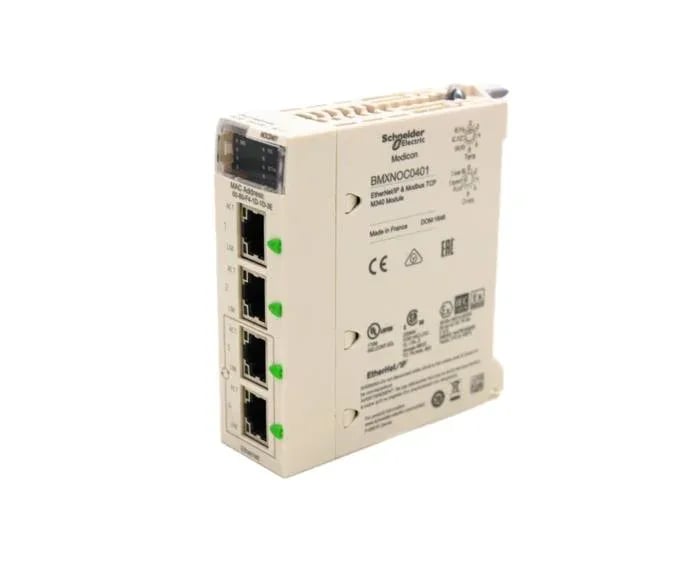

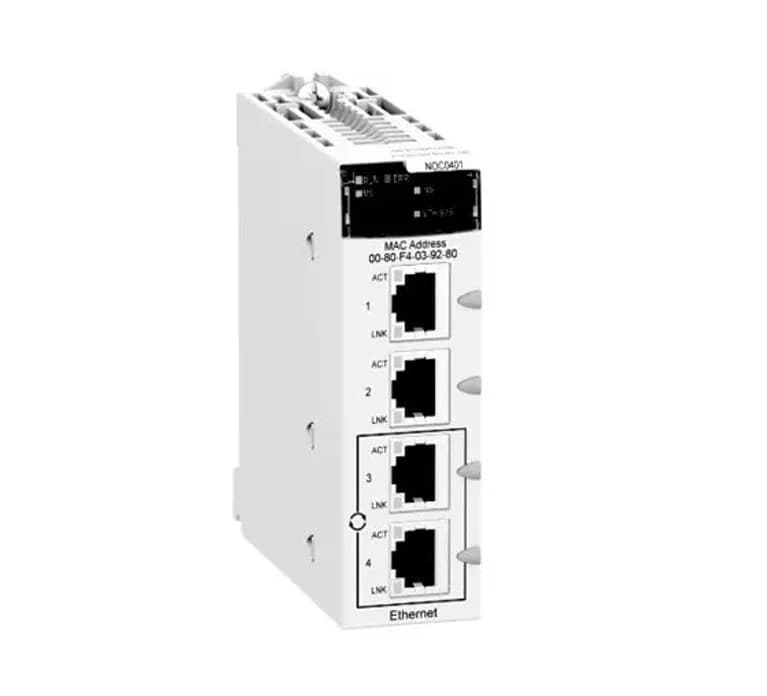

BMXNOC0401 Modicon M340 Ethernet Module, 4-port Switch

MPNBMXNOC0401
Active

Schneider Electric Modicon M340, BMXNOC0401 Ethernet TCP/IP network module, embedded 4-port switch, Transparent Ready Class B30.

$642.62 – $1,401.05Ref. price · indicative, final on quote
Schneider Electric BMXNOC0401 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXNOC0401 key specifications
ParameterValue
Control typeProcessor or system fault (ERR)
Range of productModicon M340 automation platform
Product or component typeEthernet TCP/IP network module
Integrated connection typeEthernet RJ45 10/100 Mbit/s 4 twisted pairs transparent ready class B30
Current consumption555 mA 3.3 V DC
IP degree of protectionIP20
Communication serviceBandwidth management Data Editor (via PC terminal) FDR server Rack Viewer SNMP network administrator Modbus TCP I/O Scanner and Messaging Ethernet/IP I/O Scanner and Messaging Embedded 4-port switch RSTP support Port mirroring
Relative humidity10...95 % without condensation
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G IEC 60079-0
SupplyInternal power supply via rack
ConceptTransparent Ready
MarkingCE

All specifications

BMXNOC0401 additional specifications
ParameterValue
CategoryUS1PC3418160
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive
Memory usageApplication saving Activating the standard web server
Module formatStandard
Port ethernet10BASE-T/100BASE-TX
Local signalling1 LED (green) for processor running (RUN) 1 LED (red) for processor or system fault (ERR) 1 LED (amber) for status of Ethernet network (ETH STS) 1 LED (green/red) for MS (Module Status) 1 LED (green/red) for NS (Network Status)
Protective treatmentTC
Environmental characteristicHazardous location class I division 2
Ambient air temperature for operation32...140 °F (0...60 °C)

Product details

The Schneider BMXNOC0401 is an Ethernet TCP/IP network module for the Modicon M340 platform, carrying an embedded 4-port switch and Transparent Ready Class B30 certification. Powered internally via the rack backplane at 555 mA from the 3.3 V DC supply — no separate power wiring needed. The four RJ45 ports support 10/100 Mbit/s with auto-crossover, and the switch stack includes RSTP for redundant ring topologies, port mirroring for diagnostics, and bandwidth management.

Compared to BMXNOE0100 — not a drop-in

The BMXNOE0100 is a single-port Ethernet module for the same M340 rack, but it draws 90 mA from a separate 24 V DC supply, not from the backplane. The BMXNOC0401 replaces that external supply need and adds three extra ports plus managed switch features (RSTP, port mirroring). The NOE0100 has a RESET push-button for cold restart; the NOC0401 only reports an ERR LED. If your panel was wired for the NOE0100's 24 V supply, you cannot simply swap without removing that supply and verifying the backplane power budget can handle the extra 555 mA at 3.3 V. Also confirm the application needs layer-2 switching — the NOC0401 is a switch, not just a gateway.

Rack fitting & integration

Standard format module — occupies one slot in the M340 rack. No external power connection; power comes from the rack's backplane. LEDs indicate RUN (green), ERR (red), ETH STS (amber), MS (green/red), and NS (green/red). Communication services include Modbus TCP I/O Scanner and Messaging, EtherNet/IP I/O Scanner and Messaging, FDR server, SNMP, and web server (Data Editor, Rack Viewer). Supports Bandwidth Management and is rated Transparent Ready Class B30. IP20 protection — install in a cabinet.

Frequently asked questions

What is the supply requirement for this module?

Internal power supply via the rack backplane at 3.3 V DC, drawing 555 mA.

Can the BMXNOC0401 replace a BMXNOE0100 in an existing panel?

Not directly. The BMXNOC0401 is powered from the backplane (3.3 V DC, 555 mA) whereas the BMXNOE0100 requires a separate 24 V DC supply (90 mA). Additionally, the BMXNOC0401 has four ports with managed switch features; the BMXNOE0100 is a single-port module. Panel wiring and power supply changes would be needed.

What compliance documentation is available for the BMXNOC0401?

The module meets IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS, IEC 61000-6-5, IEC 61850-3, IEC 60079-0, and carries CE marking under low voltage, EMC, and ATEX directives.
