Schneider Electric BMXNOE0100

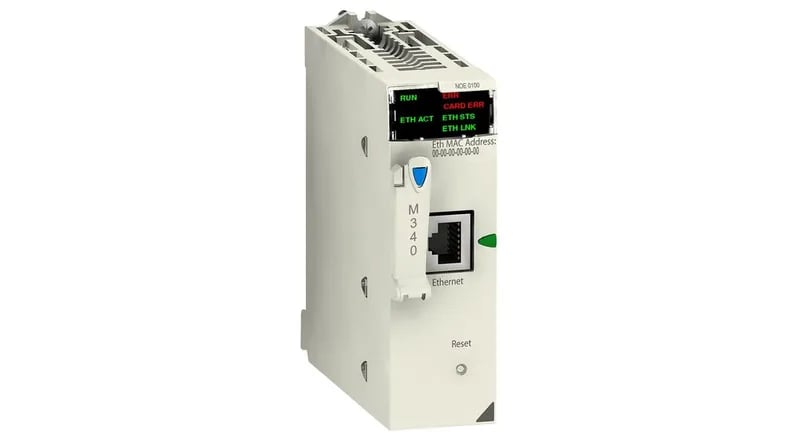

BMXNOE0100 Modicon M340 Ethernet Module, 1 x RJ45

MPNBMXNOE0100
Active

Schneider Electric Modicon M340 Ethernet TCP/IP network module, BMXNOE0100, 1 x RJ45, 10/100 Mbit/s, Transparent Ready class B30, internal rack power supply.

$566.00 – $1,438.47Ref. price · indicative, final on quote
Schneider Electric BMXNOE0100 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXNOE0100 key specifications
ParameterValue
Control typeRESET push-button cold restart
Range of productModicon M340 automation platform
Product or component typeEthernet TCP/IP network module
Integrated connection typeEthernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class B30
Current consumption90 mA 24 V DC
IP degree of protectionIP20
Communication serviceBandwidth management Data Editor (via PC terminal) FDR server Rack Viewer SNMP network administrator Global Data I/O scanning Modbus TCP messaging Web server configurable
Relative humidity10...95 % without condensation
SupplyInternal power supply via rack
ConceptTransparent Ready
MarkingCE
CategoryUS1PC3418160

All specifications

BMXNOE0100 additional specifications
ParameterValue
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Memory usageApplication saving Activating the standard web server
Module formatStandard
Port ethernet10BASE-T/100BASE-TX
Local signalling1 LED (green) for activity on Ethernet network (ETH ACT) 1 LED (green) for processor running (RUN) 1 LED (green) for status of Ethernet network (ETH STS) 1 LED (red) for data rate (ETH 100) 1 LED (red) for memory card fault (CARD ERR) 1 LED (red) for processor or system fault (ERR)
Memory descriptionSupplied Flash memory card (BMXRWSC016M)
Protective treatmentTC
Ambient air temperature for operation32...140 °F (0...60 °C)

Product details

Single-port Ethernet interface for the Modicon M340 rack — the BMXNOE0100 draws 90 mA from the 24 VDC backplane and occupies one standard-module slot. The supplied Flash memory card (BMXRWSC016M) enables the embedded web server and application saving. Port is 10BASE-T/100BASE-TX RJ45, Transparent Ready class B30.

Compared to the BMXNOC0401

The BMXNOC0401 is the four-port brother in the M340 Ethernet family — it adds an embedded 4-port switch with RSTP and port mirroring, plus hazardous-location and IEC 61850 ratings. But the power rail is different: the BMXNOE0100 runs on 24 VDC (90 mA), while the BMXNOC0401 draws 555 mA from the 3.3 VDC rail. Both use the same rack internal supply, so swapping them means checking the backplane's current budget at both voltages. Form factor and rack connection are identical, but network topology and power planning differ.

IP20, standard M340 slot. Status LEDs on the face: RUN, ETH ACT, ETH STS, ETH 100, CARD ERR, ERR. Ambient operating range 0–60 °C, humidity 10–95% non-condensing. Conformal coating (TC) for mild environmental protection. No field wiring beyond a standard RJ45 patch cable; the module is entirely backplane-powered.

Frequently asked questions

What is the closest functional second-source — BMXNOC0401?

The BMXNOC0401 is a four-port Ethernet module that fits the same rack slot, but it draws power from the 3.3 V rail instead of 24 VDC. It also adds managed switch features, RSTP, and hazardous-location certifications. It is not a direct second-source without verifying the backplane power budget and network topology.

What is BMXNOE0100's listed supply?

The module is powered internally via the rack backplane.

What is BMXNOE0100's listed concept?

The module is built around the Transparent Ready concept.
