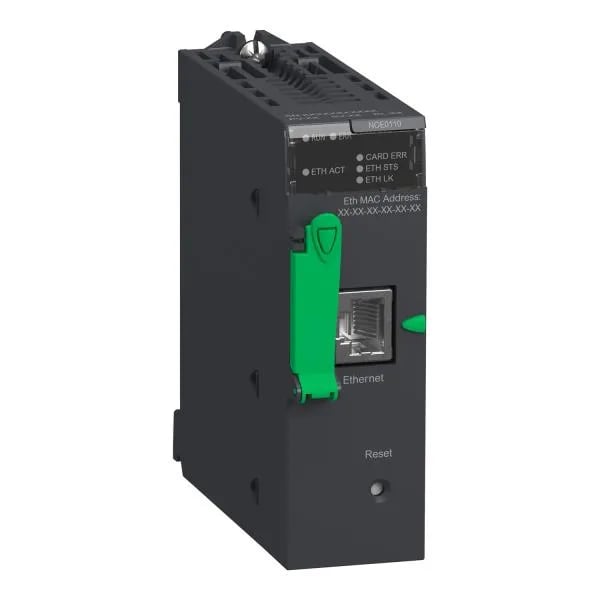

Schneider Electric BMXNOE0110

Schneider BMXNOE0110 M340 Ethernet Module, 10/100

MPNBMXNOE0110
Active

Schneider Electric BMXNOE0110, Modicon M340 Ethernet TCP/IP network module, 10/100 Mbit/s, Transparent Ready C30, CE marked.

$802.64 – $1,938.00Ref. price · indicative, final on quote
Schneider Electric BMXNOE0110 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXNOE0110 key specifications
ParameterValue
Control typeRESET push-button cold restart
Range of productModicon M340 automation platform
Product or component typeEthernet TCP/IP network module
Integrated connection typeEthernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30
Current consumption90 mA 24 V DC
IP degree of protectionIP20
Communication serviceBandwidth management FDR server Rack Viewer SNMP network administrator Global Data I/O scanning Modbus TCP messaging Web server configurable Data Editor (via PC, pocket PC or PDA terminal) SOAP XML Web service (server)
Relative humidity10...95 % without condensation
SupplyInternal power supply via rack
ConceptTransparent Ready
MarkingCE
CategoryUS1PC3418160

All specifications

BMXNOE0110 additional specifications
ParameterValue
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Memory usageUser web page size internal RAM Activating the standard web server supplied Flash memory card (BMXRWSC016M) Application saving supplied Flash memory card (BMXRWSC016M)
Module formatStandard
Port ethernet10BASE-T/100BASE-TX
Local signalling1 LED (green) for activity on Ethernet network (ETH ACT) 1 LED (green) for processor running (RUN) 1 LED (green) for status of Ethernet network (ETH STS) 1 LED (red) for data rate (ETH 100) 1 LED (red) for memory card fault (CARD ERR) 1 LED (red) for processor or system fault (ERR)
Memory descriptionSupplied Flash memory card (BMXRWSC016M) Internal RAM 16000 kB
Protective treatmentTC
Ambient air temperature for operation32...140 °F (0...60 °C)

Product details

The BMXNOE0110 is an Ethernet TCP/IP network module for the Modicon M340 automation platform. It provides a 10/100 Mbit/s RJ45 connection and supports the Transparent Ready concept for seamless integration into Schneider Electric networked architectures.

Power and Mounting

The module draws power internally from the rack backplane, consuming 90 mA at 24 V DC. No external supply wiring needed. Standard M340 form factor fits in existing rack slots.

Communication Capabilities

Communications include Modbus TCP messaging, I/O scanning, Global Data, web server, SNMP, SOAP XML Web services, FDR server, and Rack Viewer. This makes it a versatile gateway for control data and diagnostics.

IP20 rated for indoor control cabinets. Operating temperature 0 to 60 °C. CE marked under low-voltage directive 2014/35/EU and EMC directive 2014/30/EU.

Frequently asked questions

What is BMXNOE0110's listed supply requirement?

The module is powered internally via the rack backplane and draws 90 mA at 24 V DC.

What does Transparent Ready mean for this module?

Transparent Ready is Schneider Electric's networking concept that enables plug-and-play integration with other Transparent Ready devices, simplifying commissioning and diagnostics.

What compliance documentation does BMXNOE0110 carry?

The module is CE marked and complies with low-voltage directive 2014/35/EU and EMC directive 2014/30/EU.
