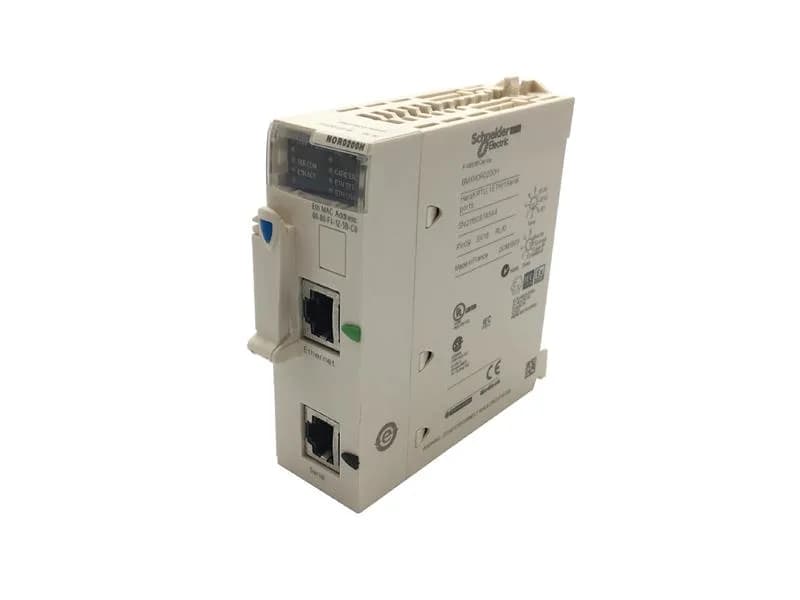

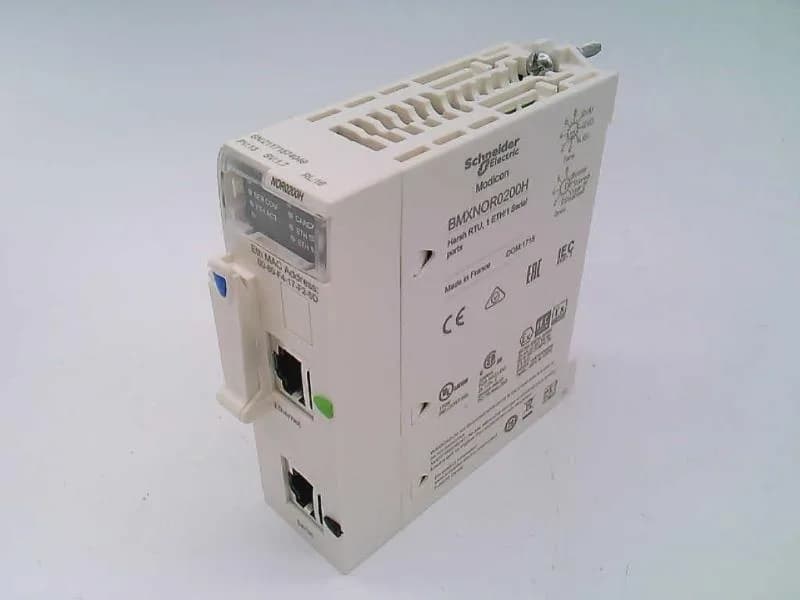

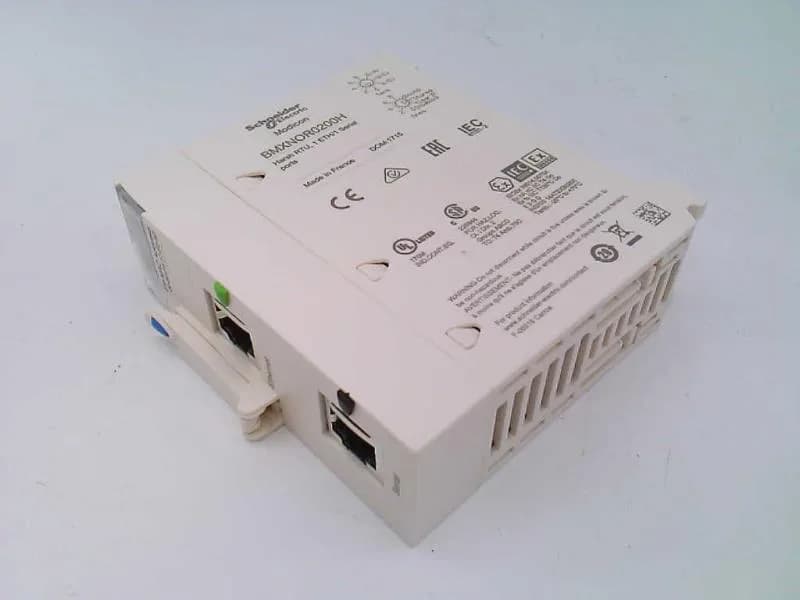

Schneider Electric BMXNOR0200H

Schneider BMXNOR0200H Modicon M340 Communication Module, IEC

MPNBMXNOR0200H
Active

Schneider Electric Modicon M340 Communication Module BMXNOR0200H, rack-powered, IEC 60870-5-101/104 and DNP3, for severe environments, -25…70°C, IP20.

$680.72Ref. price · indicative, final on quote
Schneider Electric BMXNOR0200H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXNOR0200H key specifications
ParameterValue
Range of productModicon M340
Product or component typeCommunication module
Integrated connection typeEthernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 Serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30
Current consumption95 mA 24 V DC
IP degree of protectionIP20
Communication serviceBandwidth management Modbus TCP messaging DNP3/DNP3 IP protocol IEC 60870-5 -101/-104 protocol Time stamped events management External modem management (serial, PSTN, GSM, GPRS/3G) Data logging in CSV files Email/SMS notifications Web server, rack viewer, data editor BootP, DHCP, FDR client SMTP server, FTP client/server, NTP client, SNMP agent, Automatic events backup on power loss Multi-protocols support in a single module (master and slave) Transparent events routing from remote slaves to SCADA
Relative humidity10...95 % without condensation
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G IEC 60079-0
SupplyInternal power supply via rack
CategoryUS1PC3418160
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive
Memory usageActivating the standard web server User web pages storage Data logging CSV files storage

All specifications

BMXNOR0200H additional specifications
ParameterValue
Module formatStandard
Port ethernet10BASE-T/100BASE-TX
Local signalling1 LED (green) for activity on Ethernet network (ETH ACT) 1 LED (green) for processor running (RUN) 1 LED (green) for status of Ethernet network (ETH STS) 1 LED (red) for memory card fault (CARD ERR) 1 LED (red) for processor or system fault (ERR) 1 LED (red) for download in progress (DL) 1 LED (yellow) for serial communication (SER COM) 1 LED (green) for data rate (ETH LINK)
Memory descriptionSupplied Flash SD memory card (BMXRWS128MWF) 128000 kB
Protective treatmentConformal coating
Environmental characteristicGas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant level 2 IEC 68252 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3 Hazardous location class I division 2
Ambient air temperature for operation-13...158 °F (-25...70 °C)

Product details

The BMXNOR0200H is a Modicon M340 communication module built for IEC 60870-5-101/104 and DNP3 protocols, intended for substation automation and SCADA applications. It draws its supply directly from the rack backplane — no separate power feed needed. Two ports on an RJ45 connector: one 10/100 Ethernet channel and one RS232/485 serial port running 300–38400 bit/s. The module handles multi-protocol master/slave roles, Modbus TCP messaging, time-stamped events, data logging, and email/SMS notifications. Memory comes as a supplied 128 MB Flash SD card for web pages, CSV logging, and user storage.

Built for severe environments

Rack-powered, draws 95 mA at 24 VDC. Standard module format — fits any M340 rack slot. IP20 protection on the front panel.

Frequently asked questions

What is the supply requirement for BMXNOR0200H?

The module is powered internally via the Modicon M340 rack backplane; no external supply is needed. It draws 95 mA at 24 V DC from the rack.

What compliance certifications does BMXNOR0200H carry?

It is certified to IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS, IEC 61000-6-5, IEC 61850-3, and IEC 60079-0. It also meets EU Low Voltage, EMC, and ATEX directives.

What is the BMXNOR0200H's category code?

The listed category code is US1PC3418160. This is a Schneider internal code for product classification.
