Schneider Electric BMXP341000

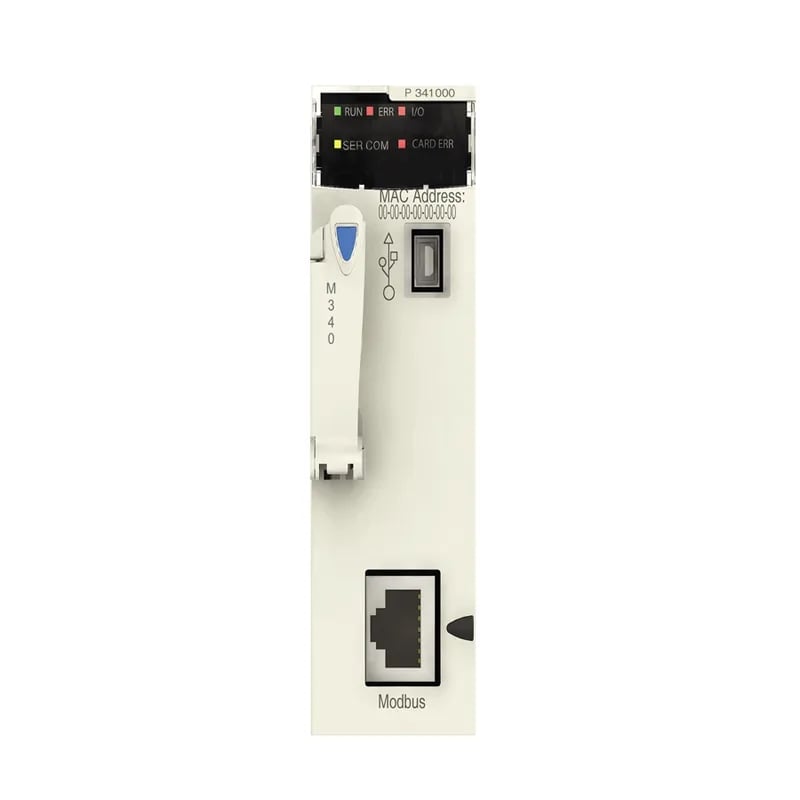

Schneider BMXP341000 Modicon M340 Processor, Modbus, 512 DI

MPNBMXP341000
Active

Schneider Electric Modicon M340 processor module BMXP341000, Modbus serial communication, 512 discrete I/O and 128 analog I/O capacity, internal rack power supply.

$233.68 – $465.00Ref. price · indicative, final on quote
Schneider Electric BMXP341000 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXP341000 key specifications
ParameterValue
Range of productModicon M340 automation platform
Product or component typeProcessor module
Integrated connection typeNon isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex Non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex USB port 12 Mbit/s
Current consumption72 mA 24 V DC
IP degree of protectionIP20
Communication module processor capacity2 Ethernet communication module 2 AS-Interface module
Relative humidity5...95 % without condensation
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G
SupplyInternal power supply via rack
ConceptModbus
MarkingCE UL CSA RCM EAC UKCA China RoHS WEEE IEC
CategoryUS1PC3418160

All specifications

BMXP341000 additional specifications
ParameterValue
Requests1 K data bytes per request character mode 252 data bytes per RTU request Modbus 504 data bytes per ASCII request Modbus
Bus length0...32.8 ft (0...10 m) serial link non isolated character mode segment 0...32.8 ft (0...10 m) serial link non isolated Modbus segment 0...3280.8 ft (0...1000 m) serial link isolated character mode segment 0...3280.8 ft (0...1000 m) serial link isolated Modbus segment 0...49.2 ft (0...15 m) character mode point-to-point 0...49.2 ft (0...15 m) Modbus point-to-point
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive
MonitoringDiagnostic counters Modbus Event counters Modbus
Status LED1 LED (Green) processor running (RUN) 1 LED (Red) I/O module fault (I/O) 1 LED (Red) memory card fault (CARD ERR) 1 LED (Red) processor or system fault (ERR) 1 LED (Yellow) activity on Modbus (SER COM)
Number of racks2
System overhead0.2 ms fast task 1.05 ms master task
Control channelsProgrammable loops
Control parameterOne CRC on each frame (RTU) Modbus One LRC on each frame (ASCII) character mode One LRC on each frame (ASCII) Modbus
Number of devices2 point-to-point character mode 2 point-to-point Modbus
Memory descriptionInternal RAM 2048 kB Internal RAM 128 kB data Internal RAM 1792 kB program constants and symbols Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data
Number of addresses0...248 character mode 0...248 Modbus
Protective treatmentTC
Application structure1 periodic fast task 32 event tasks 1 cyclic/periodic master task No auxiliary task
Maximum tap links length<131.2 ft (40 m) serial link isolated Modbus segment
Default size of object areas128 %KWi constant words located internal data 256 %Mi located internal bits 512 %MWi internal words located internal data
Maximum size of object areas16250 %Mi located internal bits 32464 %MWi internal words located internal data 32760 %KWi constant words located internal data
Number of devices per segment0...32character mode) 0...32Modbus)
Number of instructions per4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 5.4 Kinst/ms 100 % Boolean
Execution time per instruction0.18 µs Boolean 0.26 µs double-length words 0.38 µs single-length words 1.74 µs floating points
Analogue i (O processor capacity)128 I/O
Ambient air temperature for operation32...140 °F (0...60 °C)
Number of application specific channel20
Local i (O processor capacity (discrete))512 I/O

Product details

The BMXP341000 is a processor module in the Modicon M340 automation platform, handling up to 512 discrete and 128 analog I/O points over a Modbus serial link. It draws power directly from the rack backplane, so no separate supply connection is needed. Boolean execution runs at 0.18 µs per instruction, with a combined 4.2 K instructions per ms on a 65/35 Boolean/arithmetic mix — fast enough for most mid-range machine control tasks.

Integration and Connectivity

The non-isolated serial link supports RS232C and RS485, half or full duplex, at 0.3 to 19.2 kbit/s in character mode or Modbus RTU/ASCII. Maximum segment length on an isolated Modbus link is 1000 m drop; non-isolated links are limited to 10 m segments. Up to 32 devices per segment on non-isolated serial, and point-to-point configuration also works. A USB port adds 12 Mbit/s local access for programming or diagnostics.

Compliance marks include CE, UL 61010-2-201, CSA C22.2, RCM, EAC, UKCA, and China RoHS — covers most industrial panels for North America, Europe, and APAC.

Memory and Data Handling

The module has 2 MB internal RAM split into 128 kB data and 1792 kB program/constants/symbols. An optional BMXRMS008MP memory card can back up programs, constants, and symbols. Default object areas include 512 internal words, 256 internal bits, and 128 constant words, expandable up to 32760 constant words and 32464 internal words on the max side.

Frequently asked questions

What is BMXP341000's listed supply?

It uses an internal power supply via the rack backplane, drawing 72 mA at 24 V DC from the backplane bus.

What is the communication concept of BMXP341000?

The processor uses Modbus serial communication, supporting RTU or ASCII modes via non-isolated RJ45 connections (RS232C or RS485).

What compliance documentation does Schneider provide for BMXP341000?

The module carries CE, UL, CSA, RCM, EAC, UKCA, China RoHS, and WEEE marks, and complies with IEC 61131-2, IEC 61010-2-201, and EN/IEC 61850-3.

What is the maximum I/O capacity for BMXP341000?

It can handle up to 512 discrete I/O and 128 analog I/O locally, plus up to 20 application-specific channels.
