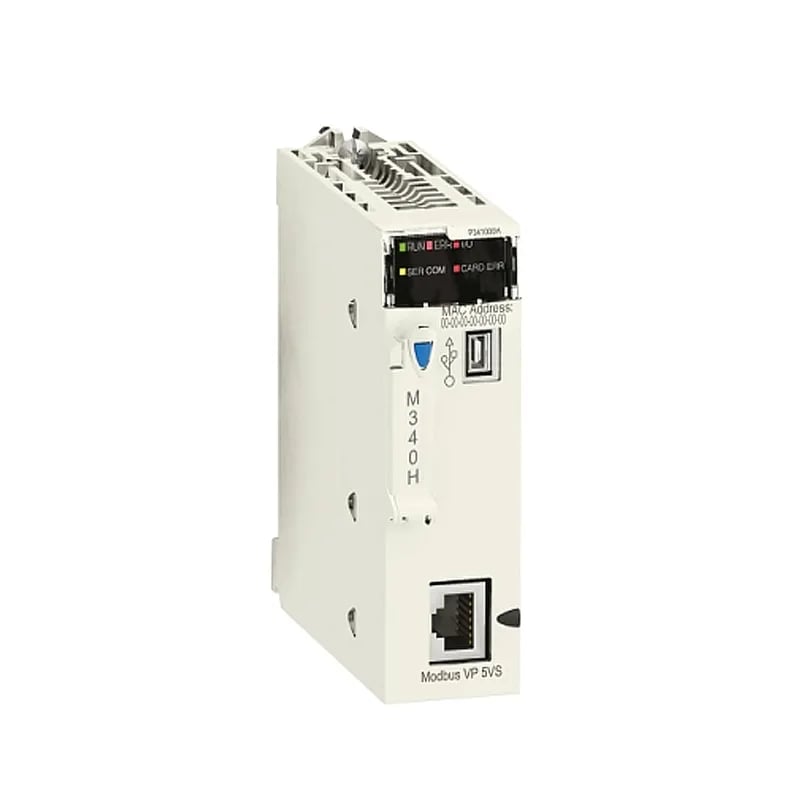

Schneider Electric BMXP341000H

Schneider Electric BMXP341000H M340 Processor, 4.2 Kinst/ms

MPNBMXP341000H
Obsolete

Schneider Electric Modicon M340 processor module BMXP341000H, Modbus serial, internal rack supply, 2 MB RAM, 4.2 Kinst/ms.

$701.00Ref. price · indicative, final on quote
Schneider Electric BMXP341000H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXP341000H key specifications
ParameterValue
Range of productModicon M340 automation platform
Product or component typeProcessor module
Integrated connection typeNon isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex Non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex USB port 12 Mbit/s
Current consumption72 mA 24 V DC
IP degree of protectionIP20
Communication module processor capacity2 Ethernet communication module 2 AS-Interface module
Relative humidity5...95 % without condensation
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G IEC 60079-0
SupplyInternal power supply via rack
ConceptModbus
MarkingCE UL CSA RCM EAC UKCA China RoHS WEEE IEC ATEX
CategoryUS1PC3418160

All specifications

BMXP341000H additional specifications
ParameterValue
Requests1 K data bytes per request character mode 252 data bytes per RTU request Modbus 504 data bytes per ASCII request Modbus
Bus length0...32.8 ft (0...10 m) serial link non isolated character mode segment 0...32.8 ft (0...10 m) serial link non isolated Modbus segment 0...3280.8 ft (0...1000 m) serial link isolated character mode segment 0...3280.8 ft (0...1000 m) serial link isolated Modbus segment 0...49.2 ft (0...15 m) character mode point-to-point 0...49.2 ft (0...15 m) Modbus point-to-point
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive 2014/34/EU - ATEX directive
MonitoringDiagnostic counters Modbus Event counters Modbus
Status LED1 LED (Green) processor running (RUN) 1 LED (Red) I/O module fault (I/O) 1 LED (Red) memory card fault (CARD ERR) 1 LED (Red) processor or system fault (ERR) 1 LED (Yellow) activity on Modbus (SER COM)
Number of racks2
System overhead0.2 ms fast task 1.05 ms master task
Control channelsProgrammable loops
Control parameterOne CRC on each frame (RTU) Modbus One LRC on each frame (ASCII) character mode One LRC on each frame (ASCII) Modbus
Number of devices2 point-to-point character mode 2 point-to-point Modbus
Memory descriptionInternal RAM 2048 kB Internal RAM 128 kB data Internal RAM 1792 kB program constants and symbols Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data
Number of addresses0...248 character mode 0...248 Modbus
Protective treatmentConformal coating
Application structure32 event tasks 1 cyclic/periodic master task 1 periodic fast task No auxiliary task
Maximum tap links length<131.2 ft (40 m) serial link isolated Modbus segment
Default size of object areas128 %KWi constant words located internal data 256 %Mi located internal bits 512 %MWi internal words located internal data
Environmental characteristicGas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant Kb/2 IEC 60068-2-52 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3
Maximum size of object areas16250 %Mi located internal bits 32464 %MWi internal words located internal data 32760 %KWi constant words located internal data
Product specific applicationFor severe environments
Number of devices per segment0...32character mode) 0...32Modbus)
Number of instructions per4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 5.4 Kinst/ms 100 % Boolean
Execution time per instruction0.18 µs Boolean 0.26 µs double-length words 0.38 µs single-length words 1.74 µs floating points
Analogue i (O processor capacity)128 I/O
Ambient air temperature for operation-13...158 °F (-25...70 °C)
Number of application specific channel20
Local i (O processor capacity (discrete))512 I/O

Product details

Platform role and key ratings

The Schneider Electric BMXP341000H is a processor module for the Modicon M340 automation platform, powered via the rack backplane (72 mA at 24 V DC) and featuring Modbus serial master/slave communication with selectable RTU, ASCII or character mode over non-isolated RS232/485 links. Execution speed sits at 0.18 µs for Boolean instructions and 4.2 Kinst/ms under a mixed 65 % Boolean / 35 % fixed-arithmetic load, giving the processor capacity for 512 discrete local I/O and 128 analog I/O channels across two racks. Internal memory comprises 2 MB RAM (128 kB data, 1,792 kB program/constants/symbols) with option to use a BMXRMS008MP memory card for non-volatile backup of program and constants.

Lifecycle and compliance posture

The module carries global compliance marks: CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, IEC, ATEX, plus conformity to IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, and environmental resistance per ISA S71.04 GX and IEC 60721-3-3 (gas, dust, sand, salt, mold). Conformal coating is standard, supporting deployment in severe environments with operating temperature from -25 to 70 °C and relative humidity 5–95 % non-condensing.

Integration and control capacity

Application structure supports 32 event tasks plus one cyclic/master task and one fast task (0.2 ms overhead) and one master task (1.05 ms overhead). No auxiliary task. This suits time-critical sequences and periodic monitoring in a single processor chassis. Modbus communication addresses up to 248 devices per segment across 0–10 m non-isolated segments or 0–1,000 m isolated segments, with diagnostic counters and event counters built in. The serial link also supports character mode (ASCII) with similar reach. Processor capacity extends to two Ethernet communication modules and two AS-Interface modules, plus 20 application-specific channels.

Frequently asked questions

What is BMXP341000H's listed supply method?

The BMXP341000H uses an internal power supply via the rack backplane, drawing 72 mA at 24 V DC. No separate external supply connection is needed.

What communication protocol does RMX / what is its Modbus concept?

The BMXP341000H is a Modbus processor supporting master/slave operations over non-isolated serial links (RS232/485) with selectable RTU, ASCII, or character mode framing.

What compliance certifications does this module carry?

It carries CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, IEC, ATEX, and meets IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, plus environmental and directive approvals including ATEX and EMC immunity.
