Schneider Electric BMXP3420102

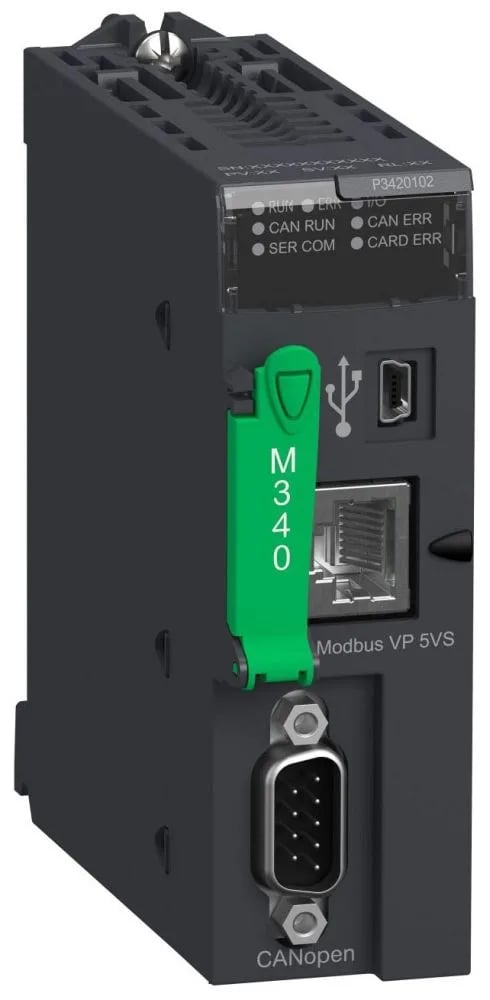

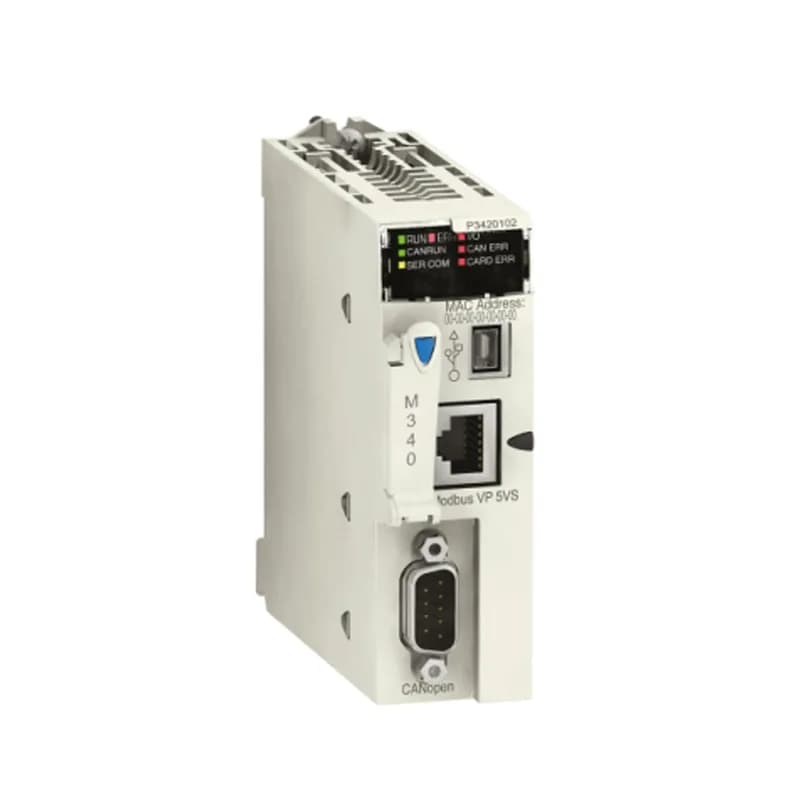

Schneider BMXP3420102 Modicon M340 Processor, 4096 kB RAM

MPNBMXP3420102
Active

Schneider Modicon M340 processor module BMXP3420102, 4096 kB RAM, CANopen master, Modbus serial, IP20, internal rack supply.

$1,003.00Ref. price · indicative, final on quote
Schneider Electric BMXP3420102 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXP3420102 key specifications
ParameterValue
ProtocolCANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA
Range of productModicon M340 automation platform
Product or component typeProcessor module
Integrated connection typeNon isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex Non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex USB port 12 Mbit/s CANopen master bus SUB-D 9 2 twisted shielded pairs 20 kbit/s...1 Mbit/s
Current consumption90 mA 24 V DC
IP degree of protectionIP20
Embedded communication serviceNetwork management (NMT) CANopen Process Data Object (PDO) CANopen Service Data Object (SDO) CANopen Special functions (SYNC, EMCY, TIME) CANopen
Communication module processor capacity2 Ethernet communication module 4 AS-Interface module
Relative humidity5...95 % without condensation
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G
SupplyInternal power supply via rack
ConceptModbus CANopen

All specifications

BMXP3420102 additional specifications
ParameterValue
MarkingCE UL CSA RCM EAC UKCA China RoHS WEEE IEC
CategoryUS1PC3418160
Requests1 K data bytes per request character mode 252 data bytes per RTU request Modbus 504 data bytes per ASCII request Modbus
Bus length0...32.8 ft (0...10 m) serial link non isolated character mode segment 0...32.8 ft (0...10 m) serial link non isolated Modbus segment 0...3280.8 ft (0...1000 m) serial link isolated character mode segment 0...3280.8 ft (0...1000 m) serial link isolated Modbus segment 0...49.2 ft (0...15 m) character mode point-to-point 0...49.2 ft (0...15 m) Modbus point-to-point
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive
MonitoringDiagnostic counters Modbus Event counters Modbus
Status LED1 LED (Green) integrated machine/installation bus operational (CAN RUN) 1 LED (Green) processor running (RUN) 1 LED (Red) I/O module fault (I/O) 1 LED (Red) integrated machine/installation bus fault (CAN ERR) 1 LED (Red) memory card fault (CARD ERR) 1 LED (Red) processor or system fault (ERR) 1 LED (Yellow) activity on Modbus (SER COM)
Motion controlIndependent axis CANopen
Number of racks4
System overhead0.13 ms fast task 0.7 ms master task
Control channelsProgrammable loops
Control parameterOne CRC on each frame (RTU) Modbus One LRC on each frame (ASCII) character mode One LRC on each frame (ASCII) Modbus
Number of devices2 point-to-point character mode 2 point-to-point Modbus
Transmission rate1 Mbit/s 0...65.6 ft (0...20 m) 0...2.0 ft (0...0.6 m) 125 kbit/s 0...1640.4 ft (0...500 m) 0...32.8 ft (0...10 m) 20 kbit/s 0...8202.10 ft (0...2500 m) 0...984.3 ft (0...300 m) 250 kbit/s 0...820.2 ft (0...250 m) 0...32.8 ft (0...10 m) 50 kbit/s 0...3280.8 ft (0...1000 m) 0...393.7 ft (0...120 m) 500 kbit/s 0...328.08 ft (0...100 m) 0...32.8 ft (0...10 m) 800 kbit/s 0...131.2 ft (0...40 m) 0...19.7 ft (0...6 m)
Memory descriptionSupplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data Internal RAM 4096 kB Internal RAM 256 kB data Internal RAM 3584 kB program constants and symbols
Number of addresses0...248 character mode 0...248 Modbus
Protective treatmentTC
Application structureNo auxiliary task 1 cyclic/periodic master task 1 periodic fast task 64 event tasks
Maximum tap links length<131.2 ft (40 m) serial link isolated Modbus segment
Number of server device63 CANopen
Default size of object areas1024 %MWi internal words located internal data 256 %KWi constant words located internal data 512 %Mi located internal bits
Maximum size of object areas32634 %Mi located internal bits 32464 %MWi internal words 32760 %KWi constant words
Number of devices per segment0...32character mode) 0...32Modbus) 0...16 672.6 ft (205 m) CANopen) 0...32 607.0 ft (185 m) CANopen) 0...64 524.9 ft (160 m) CANopen)
Number of instructions per6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 8.1 Kinst/ms 100 % Boolean
Execution time per instruction0.12 µs Boolean 0.17 µs double-length words 0.25 µs single-length words 1.16 µs floating points
Analogue i (O processor capacity)256 I/O
Ambient air temperature for operation32...140 °F (0...60 °C)
Number of application specific channel36
Local i (O processor capacity (discrete))1024 I/O

Product details

Processor placement in a Modicon M340 rack

The BMXP3420102 is a Modicon M340 processor module that draws its supply from the rack backplane, so no separate 24 VDC feed to the module itself — budget the 90 mA draw in the rack power supply sizing. It hosts two fieldbus personalities: a CANopen master port (M20 DS 301/303-2/405, up to 63 nodes, bit rates from 20 kbit/s to 1 Mbit/s) and a non-isolated serial Modbus port (RS232C or RS485, RTU/ASCII, up to 19.2 kbit/s). The CANopen bus handles up to 64 devices per segment depending on data rate; the Modbus port addresses 0..248 slaves in RTU or ASCII mode. Internal RAM is 4096 kB total (256 kB dedicated to data, 3584 kB for program, constants, and symbols). A supplied memory card (BMXRMS008MP) provides backup of programs, constants, symbols, and data in case of power loss.

Performance and task structure

Executes Boolean logic in 0.12 µs, single-length words in 0.25 µs, and floating-point operations in 1.16 µs. Mixed instruction throughput is 6.4 Kinst/ms at 65 % Boolean + 35 % fixed arithmetic; pure Boolean reaches 8.1 Kinst/ms. Application structure allows one cyclic/periodic master task, one periodic fast task, and up to 64 event tasks. The fast-task overhead is 0.13 ms; the master task overhead is 0.7 ms. Supports up to 256 analogue I/O channels and 4 racks. CANopen motion control is available for independent axis control — relevant if you are coordinating servo or stepper drives over the CANopen bus.

Carries marking for CE, UL, CSA, RCM, EAC, UKCA, China RoHS, and WEEE. Conforms to IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS, EN/IEC 61000-6-5 (interface types 1 and 2), and EN/IEC 61850-3 (location G). Ambient operating temperature range is 0…60 °C, with relative humidity 5…95 % without condensation. IP20 protected; protective treatment is TC (conformal coating per class TC). For semiconductor fab or harsh environment use, the coating limits particle shedding and moisture ingress.

Frequently asked questions

What compliance documentation does Schneider provide for the BMXP3420102 (RoHS, UL, IEC)?

The module carries CE, UL, CSA, RCM, EAC, UKCA, China RoHS, and WEEE markings. It conforms to IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS, EN/IEC 61000-6-5, and EN/IEC 61850-3.

What supply voltage does the BMXP3420102 need?

The module is powered internally via the rack backplane. It draws 90 mA at 24 VDC from the rack, so no separate power supply wiring is required to the module.
