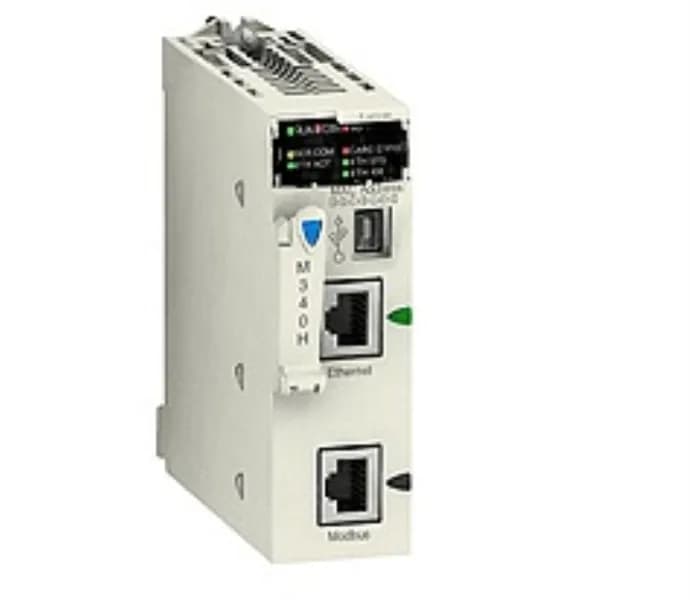

Schneider Electric BMXP342020H

BMXP342020H Modicon M340 Processor, Ethernet, Modbus

MPNBMXP342020H
Active

Schneider Electric Modicon M340 Automation Platform Processor Module BMXP342020H, Ethernet TCP/IP, Modbus Serial, IP20, Conformal Coating.

$880.11 – $1,752.00Ref. price · indicative, final on quote
Schneider Electric BMXP342020H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXP342020H key specifications
ParameterValue
Range of productModicon M340 automation platform
Product or component typeProcessor module
Integrated connection typeNon isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex Non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex USB port 12 Mbit/s Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s
Current consumption95 mA 24 V DC
IP degree of protectionIP20
Embedded communication serviceBandwidth management, Ethernet TCP/IP Data Editor, Ethernet TCP/IP Modbus TCP messaging, Ethernet TCP/IP Rack Viewer, Ethernet TCP/IP SNMP network administrator, Ethernet TCP/IP
Communication module processor capacity2 Ethernet communication module 4 AS-Interface module
Relative humidity5...95 % without condensation
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G IEC 60079-0
SupplyInternal power supply via rack
ConceptTransparent Ready Modbus
MarkingCE UL CSA RCM EAC UKCA China RoHS WEEE IEC ATEX

All specifications

BMXP342020H additional specifications
ParameterValue
CategoryUS1PC3418160
Requests1 K data bytes per request character mode 252 data bytes per RTU request Modbus 504 data bytes per ASCII request Modbus
Bus length0...32.8 ft (0...10 m) serial link non isolated character mode segment 0...32.8 ft (0...10 m) serial link non isolated Modbus segment 0...3280.8 ft (0...1000 m) serial link isolated character mode segment 0...3280.8 ft (0...1000 m) serial link isolated Modbus segment 0...49.2 ft (0...15 m) character mode point-to-point 0...49.2 ft (0...15 m) Modbus point-to-point
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive 2014/34/EU - ATEX directive
MonitoringDiagnostic counters Modbus Event counters Modbus
Status LED1 LED (Green) activity on Ethernet network (ETH ACT) 1 LED (Green) processor running (RUN) 1 LED (Green) status of Ethernet network (ETH STS) 1 LED (Green) data rate (ETH 100) 1 LED (Red) I/O module fault (I/O) 1 LED (Red) memory card fault (CARD ERR) 1 LED (Red) processor or system fault (ERR) 1 LED (Yellow) activity on Modbus (SER COM)
Port ethernet10BASE-T/100BASE-TX
Number of racks4
System overhead0.13 ms fast task 0.7 ms master task
Control channelsProgrammable loops
Control parameterOne CRC on each frame (RTU) Modbus One LRC on each frame (ASCII) character mode One LRC on each frame (ASCII) Modbus
Number of devices2 point-to-point character mode 2 point-to-point Modbus
Memory descriptionSupplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data Internal RAM 4096 kB Internal RAM 256 kB data Internal RAM 3584 kB program constants and symbols Supplied memory card (BMXRMS008MP) activation of standard web server, class B10
Number of addresses0...248 character mode 0...248 Modbus
Protective treatmentConformal coating
Application structure64 event tasks 1 periodic fast task No auxiliary task 1 cyclic/periodic master task
Maximum tap links length<131.2 ft (40 m) serial link isolated Modbus segment
Default size of object areas1024 %MWi internal words located internal data 256 %KWi constant words located internal data 512 %Mi located internal bits
Environmental characteristicGas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant Kb/2 IEC 60068-2-52 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3
Maximum size of object areas32634 %Mi located internal bits 32464 %MWi internal words 32760 %KWi constant words
Product specific applicationFor severe environments
Number of devices per segment0...32character mode) 0...32Modbus)
Number of instructions per6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 8.1 Kinst/ms 100 % Boolean
Execution time per instruction0.12 µs Boolean 0.17 µs double-length words 0.25 µs single-length words 1.16 µs floating points
Analogue i (O processor capacity)256 I/O
Ambient air temperature for operation-13...158 °F (-25...70 °C)
Number of application specific channel36
Local i (O processor capacity (discrete))1024 I/O

Product details

The BMXP342020H is a processor module for the Modicon M340 automation platform. It mounts in the rack and handles control logic with built-in Ethernet 10/100 (10BASE-T/100BASE-TX) and serial Modbus interfaces (RS232/485). Designed for severe environments — conformal coating, IP20, gas/dust/salt resistant per IEC 60721-3-3. Draws 95 mA from the 24 V rack backplane. Supports up to four racks and 256 analog I/O points. Execution times: 0.12 µs Boolean, 1.16 µs floating point. Onboard diagnostics via seven status LEDs — activity, run, fault, memory card, I/O, Ethernet speed, and Modbus — so you can see line health without cracking a laptop.

Carries CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, IEC, and ATEX markings. Complies with IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201, IEC 61000-6-5, and IEC 61850-3. Directives include low voltage, EMC, WEEE, and ATEX.

Frequently asked questions

What is the listed supply for the BMXP342020H?

It is powered via an internal power supply through the rack backplane.

What is the concept of this processor module?

It is a Transparent Ready Modbus processor, integrating Modbus serial and Ethernet TCP/IP.

What compliance certifications does it carry?

It is marked with CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, IEC, and ATEX.

What are the key communication interfaces?

It has an Ethernet 10BASE-T/100BASE-TX port and a non-isolated serial link supporting RS232/485 Modbus or character mode.
