Schneider Electric BMXP3420302CL

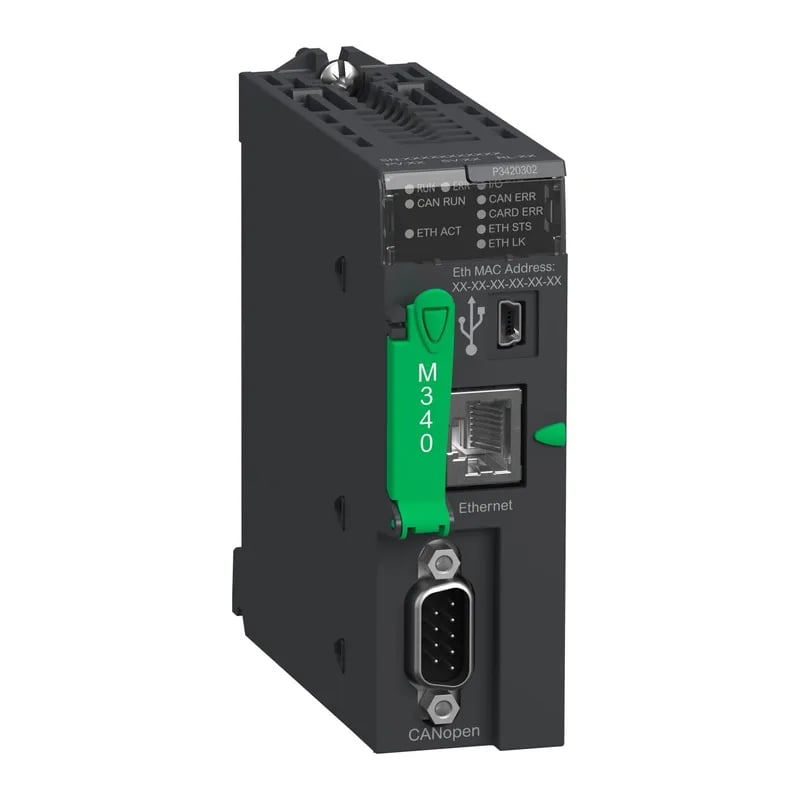

Schneider BMXP3420302CL Modicon M340 Processor, Transparent

MPNBMXP3420302CL
Active

Schneider Electric Modicon M340 automation platform processor module, BMXP3420302CL, with Transparent Ready CANopen, Ethernet, and internal rack power supply.

$3,116.00Ref. price · indicative, final on quote
Schneider Electric BMXP3420302CL datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXP3420302CL key specifications
ParameterValue
ProtocolCANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA
Range of productModicon M340 automation platform
Product or component typeProcessor module
Integrated connection typeUSB port at 12 Mbit/s CANopen master bus SUB-D 9, transmission mode: 2 twisted shielded pairs at 20 kbit/s...1 Mbit/s Ethernet TCP/IP RJ45, transmission mode: 1 twisted pair at 10/100 Mbit/s
Current consumption135 mA at 24 V DC
IP degree of protectionIP20
Embedded communication serviceNetwork management (NMT) CANopen Process Data Object (PDO) CANopen Service Data Object (SDO) CANopen Special functions (SYNC, EMCY, TIME) CANopen Bandwidth management, Ethernet TCP/IP Data Editor, Ethernet TCP/IP Modbus TCP messaging, Ethernet TCP/IP Rack Viewer, Ethernet TCP/IP SNMP network administrator, Ethernet TCP/IP
Communication module processor capacity2 Ethernet communication module 4 AS-Interface module
Relative humidity5...95 % without condensation
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G
SupplyInternal power supply via rack
ConceptTransparent Ready CANopen

All specifications

BMXP3420302CL additional specifications
ParameterValue
MarkingCE UL CSA RCM EAC UKCA China RoHS WEEE IEC
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive
Status LED1 LED (green) activity on Ethernet network (ETH ACT) 1 LED (green) integrated machine/installation bus operational (CAN RUN) 1 LED (green) processor running (RUN) 1 LED (green) status of Ethernet network (ETH STS) 1 LED (green) data rate (ETH 100) 1 LED (red) I/O module fault (I/O) 1 LED (red) integrated machine/installation bus fault (CAN ERR) 1 LED (red) memory card fault (CARD ERR) 1 LED (red) processor or system fault (ERR)
Port ethernet10BASE-T/100BASE-TX
Motion controlIndependent axis CANopen
Number of racks4
System overhead0.13 ms for fast task 0.7 ms for master task
Condition of useRequires a memory card to work (not supplied)
Control channelsProgrammable loops
Transmission rate1 Mbit/s 0...20 m 0...0.6 m 125 kbit/s 0...500 m 0...10 m 20 kbit/s 0...2500 m 0...300 m 250 kbit/s 0...250 m 0...10 m 50 kbit/s 0...1000 m 0...120 m 500 kbit/s 0...100 m 0...10 m 800 kbit/s 0...40 m 0...6 m
Memory descriptionInternal RAM 4096 kB Internal RAM 256 kB data Internal RAM 3584 kB program constants and symbols
Protective treatmentTC
Application structure64 event tasks 1 cyclic/periodic master task 1 periodic fast task No auxiliary task
Number of server device63 CANopen
Default size of object areas1024 %MWi internal words located internal data 256 %KWi constant words located internal data 512 %Mi located internal bits
Maximum size of object areas32634 %Mi located internal bits 32464 %MWi internal words 32760 %KWi constant words
Number of devices per segment0...16 for 0...32 for 0...64 for <160 m (CANopen)
Number of instructions per6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 8.1 Kinst/ms 100 % Boolean
Execution time per instruction0.12 µs Boolean 0.17 µs double-length words 0.25 µs single-length words 1.16 µs floating points
Analogue i (O processor capacity)256 I/O
Ambient air temperature for operation0...60 °C
Number of application specific channel36
Local i (O processor capacity (discrete))1024 I/O

Product details

The Schneider BMXP3420302CL is an active-production M340 processor module with Transparent Ready CANopen — it acts as CANopen master on the SUB-D 9 port (up to 63 CANopen devices) while running Ethernet TCP/IP via RJ45 for Modbus TCP messaging, SNMP, or Rack Viewer. Boolean logic executes in 0.12 µs, single-length words in 0.25 µs, floating point in 1.16 µs. Internal RAM totals 4096 kB: 256 kB data, 3584 kB for program/constants/symbols. Supports up to 4 racks, 1024 discrete local I/O and 256 analog I/O. The task architecture allows one cyclic master task, one periodic fast task, and up to 64 event tasks — no auxiliary task slot. Power comes from the rack backplane; the module draws 135 mA at 24 V DC. Operating range 0 to 60 °C, IP20, 5 to 95 % relative humidity non-condensing.

Integration Notes

Requires a memory card to boot — not supplied with the module. Order one separately; without it the processor will not run. The USB port runs 12 Mbit/s for local programming. CANopen bus transmission rate range: 20 kbit/s to 1 Mbit/s, distance dependent on baud rate (e.g. 0–20 m at 1 Mbit/s, up to 2500 m at 20 kbit/s). Mounts in any M340 rack slot. Protective coating (TC) applied for mild corrosive environments. Compliance markings include CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, and IEC. Meets LV directive 2014/35/EU, EMC directive 2014/30/EU, and WEEE 2012/19/EU. For analog I/O, the processor handles up to 256 channels; for discrete I/O up to 1024 channels. Communication module capacity: 2 Ethernet communication modules and 4 AS-Interface modules.

Frequently asked questions

What is the supply voltage and current consumption?

The module is powered internally via the rack backplane; it draws 135 mA at 24 V DC.

What compliance documentation is available for this module?

The module carries CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, and IEC marks. It complies with IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201, and meets LV, EMC, and WEEE directives.
