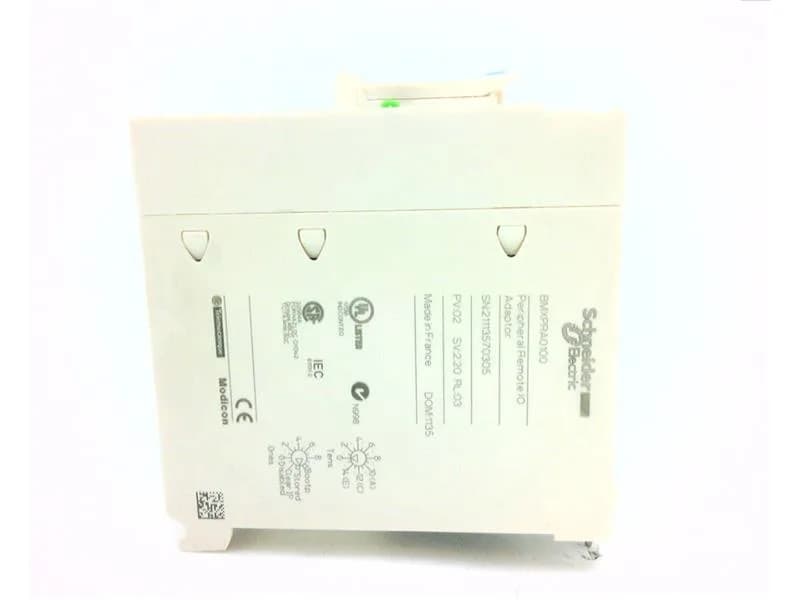

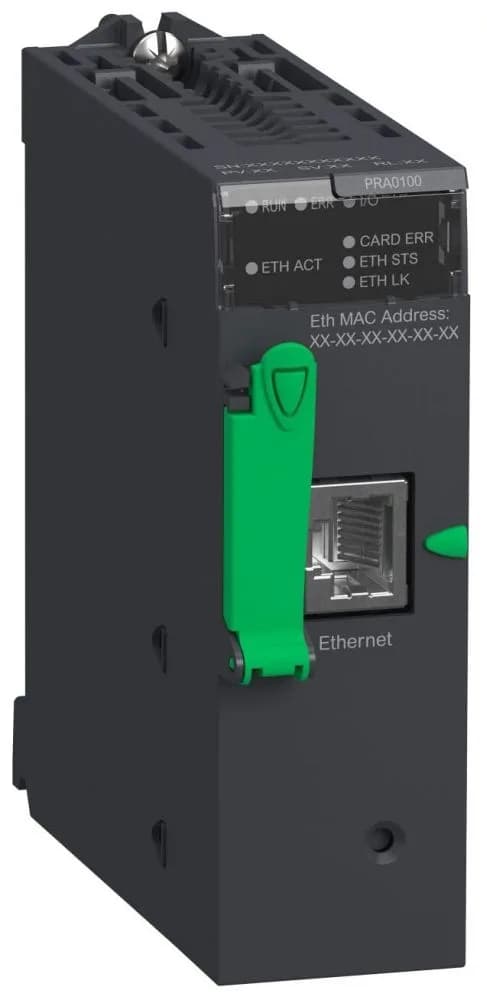

Schneider Electric BMXPRA0100

Schneider BMXPRA0100 Modicon X80 Remote I/O Adaptor, 1 Port

MPNBMXPRA0100
Active

Schneider Modicon X80 peripheral remote I/O adaptor, BMXPRA0100, 1 Ethernet/IP port, Modbus TCP, real-time clock, 448 kB memory, 95 mA at 3.3 V DC, -25…70°C, IP20.

$428.97 – $1,248.75Ref. price · indicative, final on quote
Schneider Electric BMXPRA0100 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXPRA0100 key specifications
ParameterValue
Range of productModicon X80
Product or component typePeripheral remote I/O adaptor
Integrated connection typeEthernet/IP for device network
Power dissipation in2.3 W
IP degree of protectionIP20
Communication port protocolModbus TCP
Relative humidity95 % without condensation
Operating altitude<= 2000 m
Maximum altitude transport3000 m
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G IEC 60079-0
MarkingCE
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive

All specifications

BMXPRA0100 additional specifications
ParameterValue
Module formatStandard
Number of port1
Realtime clockWith
Memory capacity448 kB internal 96 kB removable
Local signalling1 LED (green) for module active (RUN) 1 LED (red) for module error (ERR) 1 LED (red) for external fault (I/O) 1 LED (green) for activity on Ethernet network (ETH ACT) 1 LED (red) for memory card fault (CARD ERR) 1 LED (green) for Ethernet link diagnostics (STS) 1 LED (green) for Ethernet network status (link)
Application structure1 master task
Average consumption in95 mA
Environmental characteristicHazardous location class I division 2
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C

Product details

The BMXPRA0100 is a peripheral remote I/O adaptor in the Modicon X80 range – it connects a remote drop of X80 I/O modules to a controller via a single Ethernet/IP port carrying Modbus TCP. The module draws 95 mA from the rack backplane and dissipates 2.3 W, leaving headroom for additional I/O slices in the same rack. It carries a real-time clock and dual memory: 448 kB internal, plus a removable 96 kB card for program retention or data logging. The clock stays alive with the rack supply – no separate battery to schedule. Operating temperature spans -25…70°C, which covers most untreated cabinets and outdoor installations within 2000 m altitude. Storage range is -40…85°C. Hazardous location approval (Class I Div 2) and ATEX Directive 2014/34/EU compliance let you install the adaptor in Zone 2 or Division 2 environments without an additional purge or enclosure.

The BMXCRA31210 is the nearest alternative: both are X80 remote I/O adaptors. BMXPRA0100 has one Ethernet/IP port with Modbus TCP; BMXCRA31210 has three ports and supports ring topology (RSTP).

Frequently asked questions

What is the closest functional second-source — BMXCRA31210?

The BMXCRA31210 is the most comparable Modicon X80 remote I/O adaptor, but it differs in port count (3 vs 1), power consumption (1200 mA vs 95 mA), and operating temperature range (0…60°C vs -25…70°C). It adds ring topology support. It is not a pin‑compatible drop‑in without reviewing the network architecture and rack power budget.

What compliance marks does BMXPRA0100 carry?

CE marking, plus full compliance with low‑voltage (2014/35/EU), EMC (2014/30/EU), and ATEX (2014/34/EU) directives. Standards include IEC 61131‑2, IEC 61010‑2‑201, UL 61010‑2‑201, CSA C22.2 No 61010‑2‑201, IACS, IEC 61000‑6‑5, IEC 61850‑3, and IEC 60079‑0. The module is suitable for Class I Division 2 hazardous locations.
