Schneider Electric BMXSDO0802

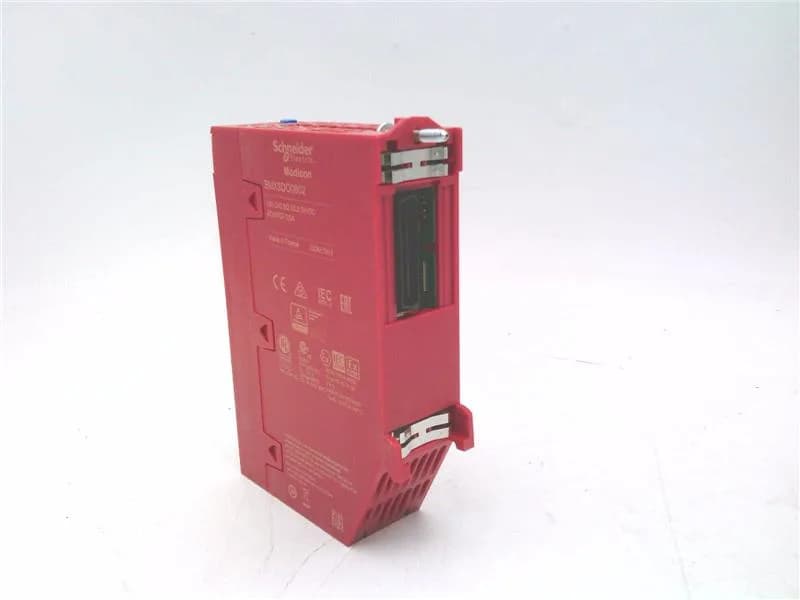

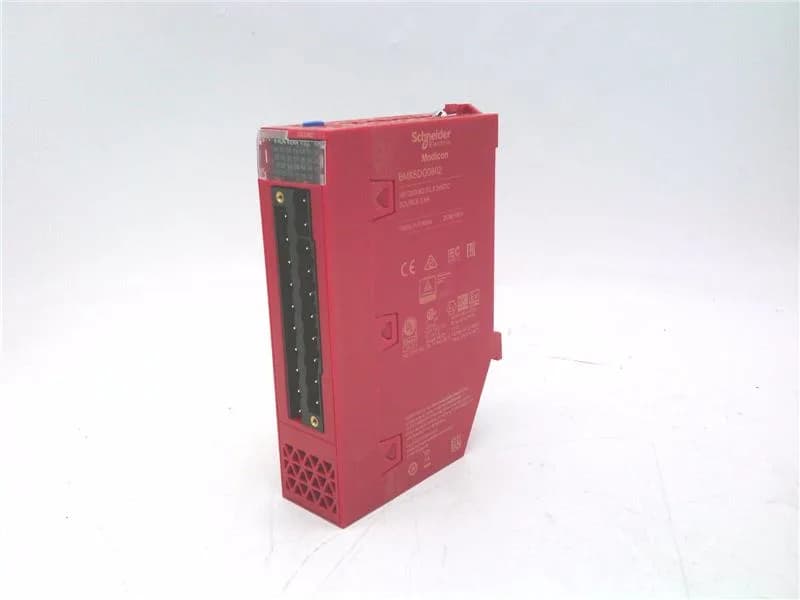

Schneider BMXSDO0802 Modicon X80 DO Module, 8CH 24V

MPNBMXSDO0802
Active

Schneider Electric Modicon X80, discrete output module, BMXSDO0802, 8 channels, 24 V DC, 0.5 A per channel, solid-state, positive logic, IP20.

$449.58Ref. price · indicative, final on quote
Schneider Electric BMXSDO0802 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXSDO0802 key specifications
ParameterValue
Protection typereverse polarity protection overload protection overvoltage protection short-circuit protection
Range of productModicon X80
Discrete output typeSolid state Not isolated
Product or component typeDiscrete output module
Maximum voltage drop10 MOhm 500 V DC
Discrete output voltage24 V 19...30 V DC
Voltage detection threshold< 14 V DC sensor fault > 18 V DC sensor OK
Current per channel0.625 A
Discrete output current0.5 A
Maximum leakage current0.5 mA at state 0
Maximum current per module10 A
Typical current consumption264 mA at 3.3 V DC 15 mA at 24 V

All specifications

BMXSDO0802 additional specifications
ParameterValue
Output short-circuit protectionWith 2 A external fuse
Power dissipation in4.4 W
Switching frequency0.5/LI² Hz
IP degree of protectionIP20
Response time on output1.2 ms
Shock resistance15 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability383000 H
Status LED1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O
Dielectric strength1500 V AC at 50/60 Hz 1 minute, output/ground 1500 V AC at 50/60 Hz 1 minute, output/internal logic
Load impedance ohmic>= 48 Ohm
Output compatibilityNot IEC 61131-2 DC input IEC 61131-2 type 3 DC input
Protective treatmentConformal coating
Discrete output logicPositive
Maximum tungsten load6 W
Discrete output number8 conforming to IEC 61131-2
Paralleling of outputsYes : 2 maximum
Output overload protectionWith current limiter With electronic circuit breaker 1.5 In < Id < 2 In
Reverse polarity protectionReverse mounted diode
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
Output overvoltage protectionWith transil diode
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...60 °C

Product details

The BMXSDO0802 is a Modicon X80 8-channel solid-state source output module rated 24 V DC 0.5 A per channel — a standard current-production spare for an X80 I/O rack. Non-isolated outputs with positive logic; all eight share a common return, so plan your field device grouping accordingly.

Ratings that affect panel wiring

Each channel can sink 0.5 A and the whole module 10 A total. If you need more current on one circuit, paralleling up to two outputs is rated — watch the minimum load impedance of 48 Ω per channel to stay within limits. Short-circuit protection uses a 2 A external fuse, so keep one in the panel BOM. Overload is handled by an electronic circuit breaker tripping between 1.5 and 2 times rated current per channel. Reverse polarity and overvoltage are covered by on-board diodes. Switching is fast enough for most discrete loads: turn-on/off within 1.2 ms. Off-state leakage stays under 0.5 mA, so sensitive loads won't creep. The module draws 264 mA from the 3.3 V backplane and 15 mA from 24 V — that's standard for an X80 output slice.

Sourcing note

The BMXSDO0802 is listed as current production. No last-time-buy notices or successor codes on file. If you've got an existing X80 rack, this drops right into the slot and cross-references to the same wiring footprint as earlier BMX DDO modules.

MPN
BMXSDO0802
