Schneider Electric BMXXBE1000

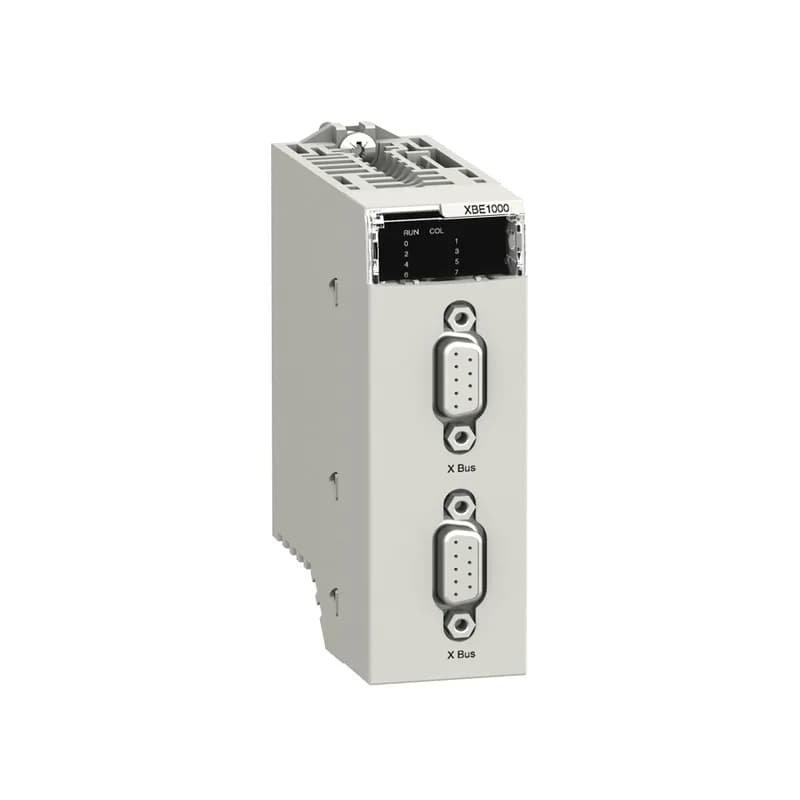

BMXXBE1000 Backplane Expander, Modicon M340, Active

MPNBMXXBE1000
Active

Modicon M340 backplane expander, BMXXBE1000, active lifecycle, IP20, for multiracks configuration.

$176.00Ref. price · indicative, final on quote
Schneider Electric BMXXBE1000 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXXBE1000 specifications
ParameterValue
Range of productModicon M340 automation platform
Accessory (separate part type)Backplane
Current consumption160 mA at 24 V DC 22 mA at 3.3 V DC
IP degree of protectionIP20
Electrical connection2 female connectors SUB-D 9
Relative humidity10...95 % without condensation
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Module formatStandard
Local signalling1 LED green for operating status (RUN) bus 1 LED red for collision error (COL) rack 4 LEDs green for rack adresses status
Protective treatmentTC
Environmental characteristicHazardous location class I division 2
Accessory (separate part category)Extension accessory
Accessory (separate part designation)Backplane expander
Accessory (separate part destination)For multiracks configuration
Ambient air temperature for operation0...60 °C

Product details

What the BMXXBE1000 Does in the Rack

The BMXXBE1000 is a Modicon M340 backplane expander that extends the rack to support multiracks configurations. It draws 160 mA at 24 V DC and 22 mA at 3.3 V DC from the backplane, so factor that into your system power budget. Two female SUB-D 9 connectors handle the inter-rack link. The unit carries IP20 protection and is standard module format.

Environmental and Installation Notes

Rated for 0…60 °C operating ambient and 10…95 % relative humidity without condensation. Can be installed in hazardous locations classified as Class I Division 2. The backplane expander is designed as an extension accessory for Modicon M340 multiracks systems; it mounts onto the backplane with no additional slot consumption.

Frequently asked questions

What standards does the BMXXBE1000 comply with?

It is certified to IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS, EN/IEC 61000-6-5 (interface types 1 and 2), and EN/IEC 61850-3 (location G).

What directives does the BMXXBE1000 meet?

It complies with the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU.

What compliance documentation is available for the BMXXBE1000?

The expander carries certifications for the listed IEC, UL, CSA, and IACS standards and meets the EU directives. These documents support qualification and global acceptance.
