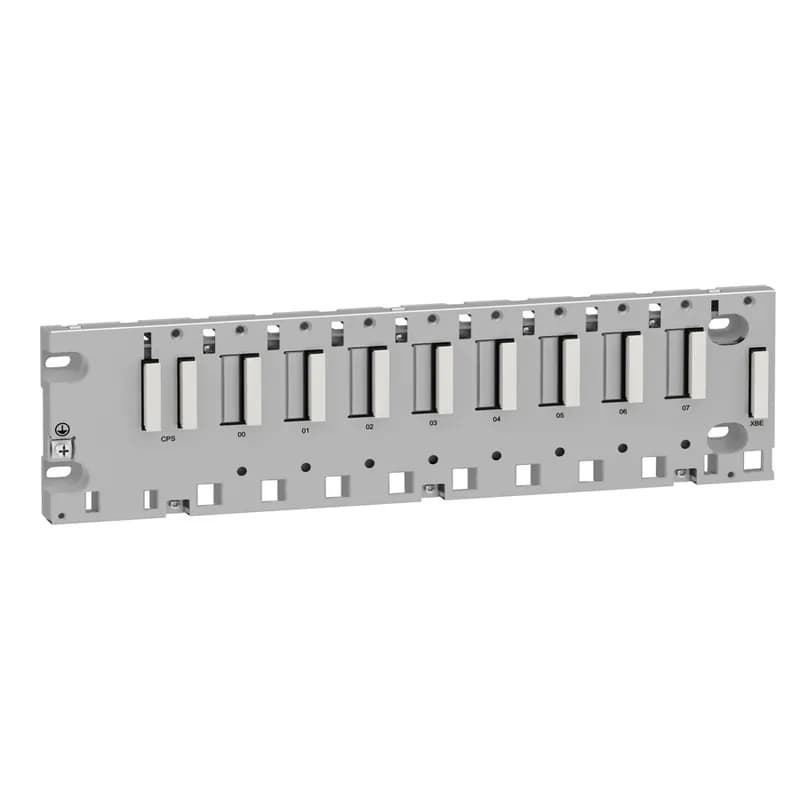

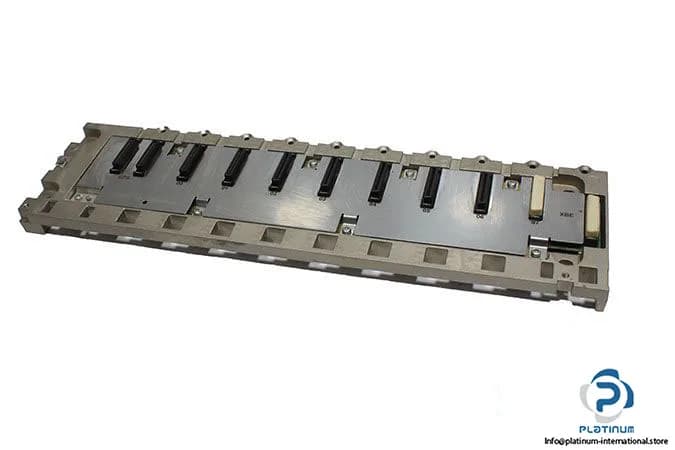

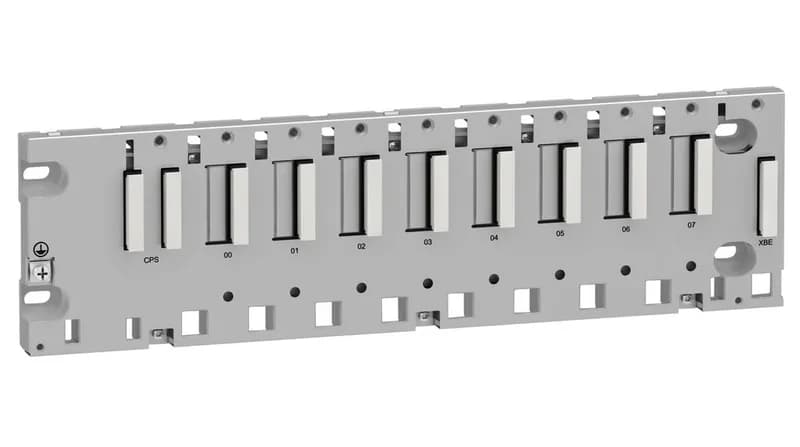

The BMXXBP0800 is the 8-slot backplane for the Modicon M340 automation platform, also part of the Modicon X80 family. It provides power and data bus connectivity for up to eight bus X modules. Mounting options include panel, mounting plate, or 35 mm DIN rail. Power consumption is 2.21 W. Operating temperature range 0 to 60 °C, humidity 10–95% non-condensing. Protection class IP20.
Width 372.8 mm, depth 19 mm, height 103.7 mm. Four M4/M5/M6 screw holes for panel or plate mounting; clips allow direct snap-on to 35 mm symmetrical DIN rail.
Compliance scope is broad: meets EN/IEC 61131-2 (PLC hardware), UL 61010-2-201 and CSA C22.2 No 61010-2-201 (industrial control equipment), plus IEC 61000-6-5 and IEC 61850-3 for substation environments. Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU apply. No separate RoHS declaration cited, but UL/CSA marks indicate restricted-substance compliance expected for the target markets.
Lifecycle status is current (active). This backplane is in standard production; no end-of-life notice. Sourcing is straightforward through authorized channels or our desk for quoted delivery.
