8-slot backplane for Modicon X80 – ruggedized for severe conditions

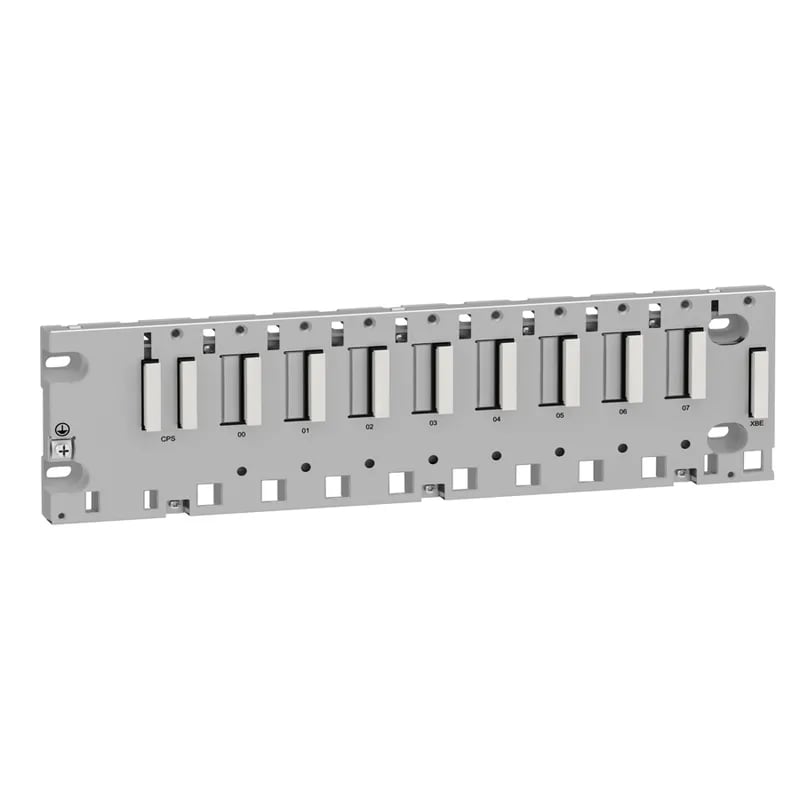

This Schneider BMXXBP0800H is a ruggedized backplane for the Modicon X80 automation platform, providing 8 bus X slots for module mounting in harsh-floor applications. Conformal coated PCB and a -25 to 70°C operating range, plus gas, dust, salt, and mold resistance per IEC 60721-3-3 – suitable for severe environments such as chemical plants or substations. Mounts via M4/M5/M6 screws to a panel or mounting plate, or clips onto 35 mm symmetrical DIN rail – field or cabinet installation without special adapters. Power consumption is 2.21 W from the backplane bus; IP20 protection; depth 19 mm, width 372.8 mm, height 103.7 mm.
Compliance and lifecycle status
Compliance stack covers EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS, EN/IEC 61000-6-5, and EN/IEC 61850-3 – substantiates use in utility substations and marine-class environments. Directives 2014/35/EU (low voltage), 2014/30/EU (EMC), and 2014/34/EU (ATEX) are met.
Sourcing and fit for your BOM line
This is a standard, active part within budget for most severe-environment PLC builds – what the techs need for reliable I/O backplane support. Quoted to order against your exact BOM line; RFQ to confirm lead time and lot availability. No direct replacement exists – this is the right-sized spec for the Modicon X80 8-slot frame.
