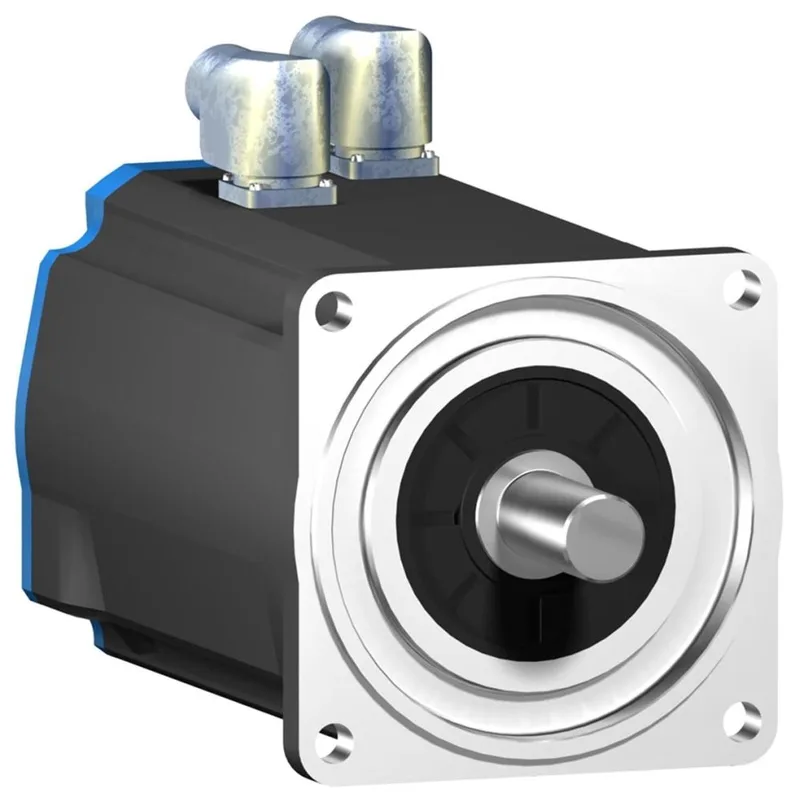

Schneider Electric BSH1403P01A2A — Servo Motors with Brake

Schneider Electric BSH1403P01A2A

MPNBSH1403P01A2A

Square D BSH1403P01A2A Servo Motor|Square D BSH1403P01A2A Servo Motor

$4,365.00Ref. price · indicative, final on quote
Schneider Electric BSH1403P01A2A datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

BSH1403P01A2A — Specifications
ParameterValue
Sub-CategoryAC Servo Motor
Product descriptionSquare D BSH1403P01A2A Servo Motor
Full technical descriptionSynchronous Type; Lexium LXM15 Servo Drive Used on; UL, CE Approval; 480 Volt AC 3-Phase Voltage Rating; IP50 Enclosure; 17.6 Amp Current Rating; 21.2 Kilogram Weight; 3000/3400/3900 Watt Power Rating; 1500/3000/4000 RPM Speed Rating; 10 Pole(S); 25.4 Newton-Meter Torque Rating; 17.94 Kilogram-Square Centimeter Motor Inertia; Single Turn High Resolution Encoder Feedback Type; Rohs/Reach/Weee Compliant; Shaft End Type Smooth; Flange Size 140 Millimeter; Number of Stack 3; Connection Type Rotatable Right Angle Elbow Connector; Case Finish Ral 9005 Opaque Black Paint Coated; Mounting Hole Diameter (4) 0.43 Inch; Without Holding Brake; Applicable Standard IEC; BSH Model
MPN
BSH1403P01A2A
