Schneider Electric C10B47E100 — Residual Current Breakers (RCCB/RCBO)

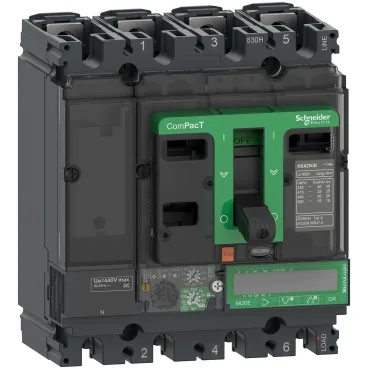

Schneider C10B47E100 ComPacT NSX MCCB, 4-pole, 100 A, 40 kA ICu

MPNC10B47E100
Active

Schneider C10B47E100 Compact Nsx, New Generation — now discontinued, supplied from remaining surplus and broker stock.

$1,570.24 – $3,413.88Ref. price · indicative, final on quote
Schneider Electric C10B47E100 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

C10B47E100 — Residual Current Protection
ParameterValue
Earth-leakage protection class / typeClass A
Trip unit technologyElectronic
Local signalling / indicationFlashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload
C10B47E100 — Electrical Ratings
ParameterValue
Rated current (In)100 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability50000 cycles at 440 V In/2 30000 cycles at 440 V In 20000 cycles at 690 V In/2 10000 cycles at 690 V In
Mechanical durability (operating cycles)50000 cycles
C10B47E100 — Identification
ParameterValue
Product nameComPacT NSX
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSX100B
C10B47E100 — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
C10B47E100 — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude0...2000 m without derating 2000 m...5000 m with derating
C10B47E100 — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

Overview

The C10B47E100 is a 4-pole ComPacT NSX molded case circuit breaker rated 100 A with a 40 kA ICu breaking capacity at 440 V AC, fitted with a MicroLogic 7.2 E electronic trip unit for LSI and earth-leakage protection. It carries an IEC 60947-2 listing and ships as a fixed-mount, toggle-operated unit with an LCD display for metering and event logs.

Compared to the C10F3TM025, the C10B47E100 adds a fourth pole (4 vs 3) and a higher continuous rating (100 A vs 25 A), but its 40 kA ICu is roughly half the 85 kA of the C10F3TM025 — pick the C10F3TM025 when the fault current exceeds 40 kA or a 3-pole frame is specified.

MPN
C10B47E100
