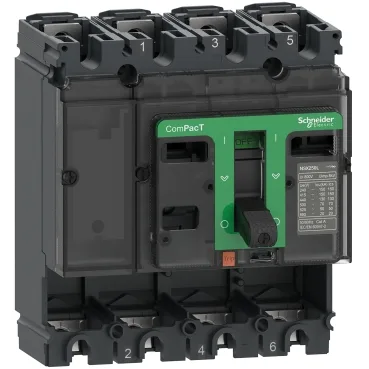

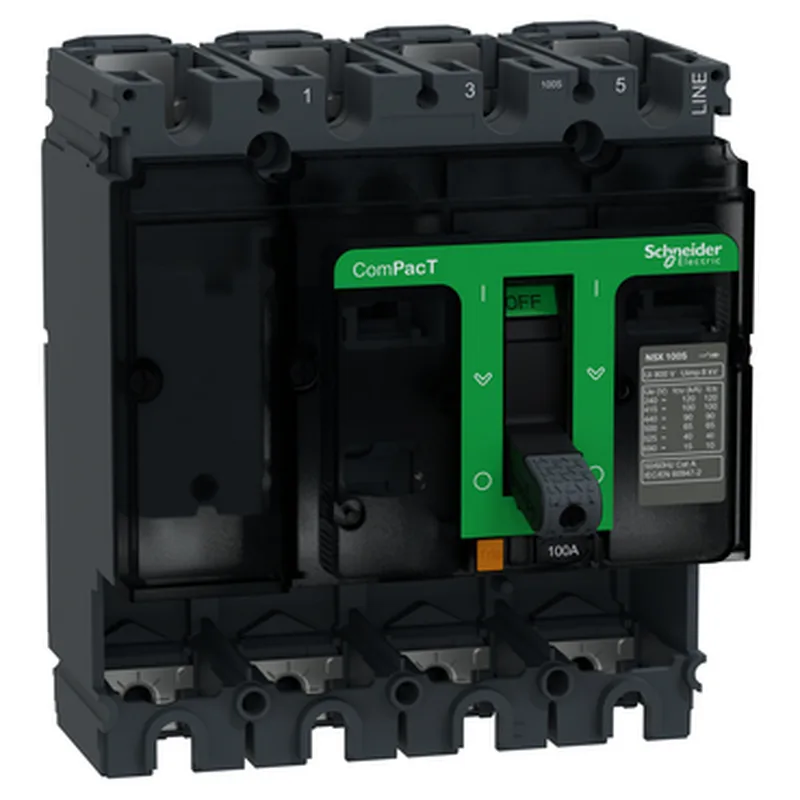

Schneider ComPacT NSX C10S4 basic frame, NSX100S, 100 A, 100 kA at 415 VAC, 4 poles, without trip unit, fixed mount, toggle control, discontinued.
| Parameter | Value |
|---|---|
| Product / component type | Basic frame |
| Device application | Distribution |
| Parameter | Value |
|---|---|
| [In] rated current | 100 A at 40 °C |
| Breaking capacity | 100 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 120 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 90 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 100 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 120 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 15 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 65 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 90 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| Parameter | Value |
|---|---|
| Poles description | 4P |
| Device short name | NSX100S |
| Standards | EN/IEC 60947-2 UL 60947-4-1 |
The C10S4 is a Schneider ComPacT NSX basic frame, model NSX100S, rated 100 A with a breaking capacity of 100 kA at 415 V AC. It is a 4-pole unit without a trip unit, intended for distribution applications. Schneider discontinued this frame as of December 2024.
