Schneider Electric C10V36E040 — Residual Current Breakers (RCCB/RCBO)

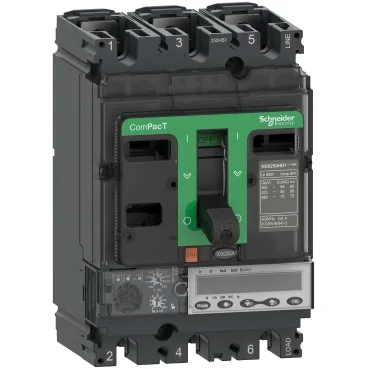

Schneider C10V36E040 ComPacT NSX circuit breaker, 40 A, 85 kA ICu

MPNC10V36E040
Obsolete

Schneider C10V36E040 Compact Nsx, New Generation — now discontinued, supplied from remaining surplus and broker stock.

$1,087.28Ref. price · indicative, final on quote
Schneider Electric C10V36E040 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C10V36E040 — Residual Current Protection
ParameterValue
Trip unit technologyElectronic
Local signalling / indicationFlashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload
C10V36E040 — Electrical Ratings
ParameterValue
Rated current (In)40 A at 40 °C
Rated operational voltage (Ue)690 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIII
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In
Mechanical durability (operating cycles)20000 cycles
C10V36E040 — Identification
ParameterValue
Product nameComPacT NSX
Product / component typeCircuit breaker
Product range / familyComPacT
Device short nameNSX100HB1
C10V36E040 — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
C10V36E040 — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude0...2000 m without derating 2000 m...5000 m with derating
C10V36E040 — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

Overview

The C10V36E040 is a Schneider ComPacT NSX molded case circuit breaker rated 40 A at 40 °C with an 85 kA ultimate breaking capacity (ICu) at 690 V AC, carrying the MicroLogic 6.2 E electronic trip unit for LSI+G protection. It is a 3-pole fixed-mount unit with a toggle control, LCD display, and Class II insulation on the front face, compliant with EN/IEC 60947-2.

The C10V36E040 is in active production as a current ComPacT NSX catalogue item; lead time is confirmed per RFQ for the exact build code.

MPN
C10V36E040
