Schneider Electric C11B34V025B — Residual Current Breakers (RCCB/RCBO)

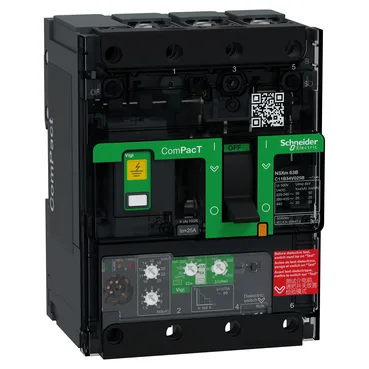

Schneider C11B34V025B ComPacT NSXm MCCB, 25A 3P 25kA, Earth

MPNC11B34V025B
Active

Schneider Electric ComPacT NSXm, C11B34V025B, 3P 25A MCCB with MicroLogic 4.1 electronic trip, 25 kA at 415 V AC, integrated earth-leakage protection, grey (RAL 7016).

Schneider Electric C11B34V025B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11B34V025B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11B34V025B — Electrical Ratings
ParameterValue
Rated current (In)25 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11B34V025B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 63B
C11B34V025B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C11B34V025B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11B34V025B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The 25 A continuous rating at 40 °C is the load it carries without tripping; the electronic MicroLogic 4.1 trip unit adds thermal memory (20 minutes before and after tripping), so it remembers prior heating and won't nuisance-trip on a reclose after a brief overload.

Front-connect terminals accept compression lugs or busbars; connection pitch is 35 mm with spreaders, 27 mm without. The 9-module width (108 mm) fits standard DIN-rail enclosures. IP40 front face, IK07 impact resistance — suitable for panel interior, not washdown zones.

Frequently asked questions

Where can I buy C11B34V025B and what is the lead time?

This part is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm lead-time and price.

What is the closest alternative to C11B34V025B in the ComPacT family?

Within the ComPacT NSXm range, the closest sibling would share the same 3-pole, 25 A frame but differ in trip-unit technology (thermal-magnetic vs electronic) or earth-leakage integration. The MicroLogic 4.1 electronic trip with integrated earth-leakage is the distinguishing feature here — a standard thermal-magnetic NSXm without the Vigi module would be a different order code.

What compliance documentation does Schneider provide for C11B34V025B?

The part is certified to EN/IEC 60947-2. Schneider typically provides a Declaration of Conformity covering the applicable EU directives (Low Voltage, EMC, RoHS) and can supply UL/CSA recognition documentation on request through the RFQ process.
