Schneider Electric C11B34V050B — Residual Current Breakers (RCCB/RCBO)

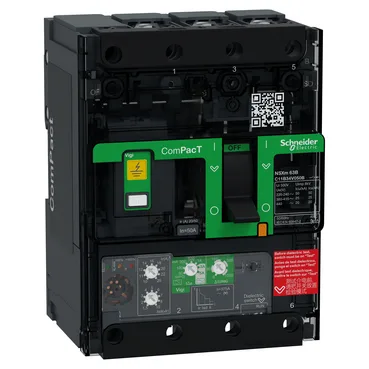

Schneider Electric C11B34V050B ComPacT NSXm, 50 A, 3P, Earth

MPNC11B34V050B
Active

Schneider Electric ComPacT NSXm, Earth leakage circuit breaker, 3P, 50 A at 40 °C, B 25 kA 415 V AC, MicroLogic 4.1 electronic trip unit, integrated earth-leakage protection, Grey (RAL 7016).

Schneider Electric C11B34V050B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11B34V050B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11B34V050B — Electrical Ratings
ParameterValue
Rated current (In)50 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11B34V050B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 63B
C11B34V050B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C11B34V050B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11B34V050B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The MicroLogic 4.1 electronic trip unit handles the overcurrent and earth-fault sensing, with selectable earth-leakage sensitivity from 30 mA up to 5 A for both class A and class AC detection. This is a current-production part per the lifecycle stage.

The B 25 kA at 415 V AC rating means this breaker can safely interrupt a fault current up to 25,000 A without failing catastrophically — that is the SCCR (short-circuit current rating) for the device itself, per EN/IEC 60947-2. In a distribution panel, that figure governs whether the breaker coordinates with the upstream protective device. Integrated earth-leakage protection eliminates the need for a separate RCD module. Sensitivity is field-selectable across 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, and 5 A for both class A (pulsating DC) and class AC (sinusoidal AC) fault types.

Mounts on a backplate, not a DIN rail. The 9-module pitch (108 mm width, 144 mm height, 80 mm depth) occupies a fixed footprint in the enclosure.

Frequently asked questions

What is the interrupting rating of C11B34V050B?

The B performance level gives 25 kA interrupting capacity at 415 V AC, per EN/IEC 60947-2.

What earth-leakage sensitivities does C11B34V050B support?

Field-selectable sensitivities: 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, and 5 A for both class A and class AC fault detection.

How do I get current pricing and availability for C11B34V050B?

The C11B34V050B is sourced and quoted to order against an RFQ through independent distribution; current pricing and availability are confirmed at quote time.
