Schneider Electric C11B44V025L — Residual Current Breakers (RCCB/RCBO)

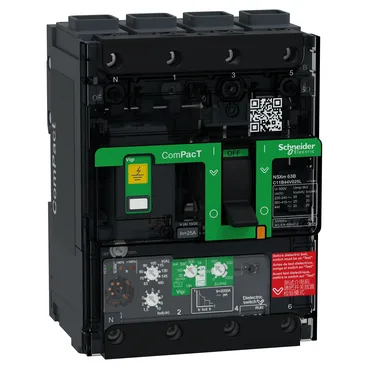

Schneider Electric C11B44V025L ComPacT NSXm, 25 A, 25 kA, 4P

MPNC11B44V025L
Active

Schneider Electric ComPacT NSXm, C11B44V025L, 25 A at 40 °C, 25 kA at 415 V AC, 4P, MicroLogic 4.1 electronic trip unit, integrated earth-leakage protection.

$710.16Ref. price · indicative, final on quote
Schneider Electric C11B44V025L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11B44V025L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11B44V025L — Electrical Ratings
ParameterValue
Rated current (In)25 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11B44V025L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 63B
C11B44V025L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C11B44V025L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11B44V025L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

Panel integration brief

The C11B44V025L is a 4-pole ComPacT NSXm MCCB rated 25 A at 40 °C with a 25 kA breaking capacity at 415 V AC (performance level B). It uses a MicroLogic 4.1 electronic trip unit with integrated earth-leakage protection, selectable from 30 mA to 5 A for class A or AC. The 108 mm wide, 144 mm tall, 80 mm deep footprint mounts on a backplate in horizontal or vertical orientation.

Above that temperature, derate per the thermal curve. The electronic MicroLogic 4.1 trip unit provides adjustable earth-leakage thresholds (30 mA to 5 A) and a thermal memory that holds the heat profile for 20 minutes before and after tripping — useful for preventing nuisance trips on reclose after a transient overload.

The C11B44V025L is listed as current production. No official successor or cross-reference exists for this exact order code.

Frequently asked questions

Where can I buy C11B44V025L and how do I get a price?

The C11B44V025L is sourced and quoted to order against an RFQ. Submit a request for quote to confirm current availability and pricing.

What is C11B44V025L's breaking capacity?

The performance level is B, with a breaking capacity of 25 kA at 415 V AC.

What earth-leakage protection does the C11B44V025L offer?

It has integrated earth-leakage protection with selectable sensitivity: 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, or 5 A for class A, and 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, or 5 A for class AC.

What compliance documentation does this brand provide for C11B44V025L?

The part is certified to EN/IEC 60947-2. It carries pollution degree 3 per IEC 60664-1 and overvoltage category IV. The IP degree is IP40 per IEC 60529; the IK degree is IK07 per IEC 62262.
