Schneider Electric C11B44V100B — Residual Current Breakers (RCCB/RCBO)

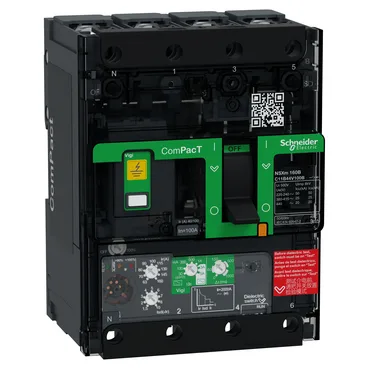

Schneider Electric C11B44V100B ComPacT NSXm, 100A 4P, 25kA

MPNC11B44V100B
Active

Schneider Electric ComPacT NSXm, MCCB, 100 A at 40 °C, 4P, 25 kA at 415 V AC, MicroLogic 4.1 electronic trip unit, integrated earth-leakage protection, grey (RAL 7016).

Schneider Electric C11B44V100B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11B44V100B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11B44V100B — Electrical Ratings
ParameterValue
Rated current (In)100 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11B44V100B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160B
C11B44V100B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C11B44V100B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11B44V100B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The C11B44V100B is a Schneider Electric ComPacT NSXm moulded-case circuit breaker rated 100 A at 40 °C with a 4-pole configuration (4P). The electronic MicroLogic 4.1 trip unit gives adjustable thermal and magnetic protection curves, plus integrated earth-leakage protection with selectable sensitivity from 30 mA to 5 A for class A and class AC residual currents. This breaker is designed for distribution applications (not motor starting — it is utilisation category A). It mounts on a backplate, accepts front-connect compression lugs or busbars, and occupies 12 module pitches at 9 mm each, so it needs 108 mm of panel width.

The breaker complies with EN/IEC 60947-2, the standard for low-voltage switchgear and controlgear. Overvoltage category IV suits it for installation at the origin of the installation (utility entrance). The IK07 impact rating (per IEC 62262) means it withstands a 2 J impact — enough for panel handling but not for exposed outdoor use.
