Schneider Electric C11E34V100B — Residual Current Breakers (RCCB/RCBO)

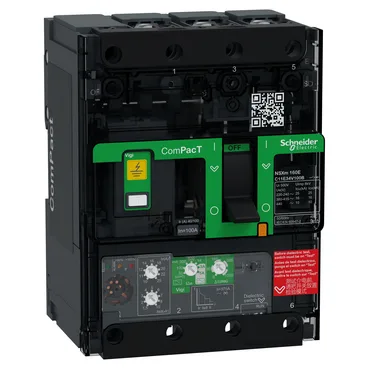

C11E34V100B ComPacT NSXm Earth Leakage Circuit Breaker, 100

MPNC11E34V100B
Obsolete

Schneider Electric ComPacT NSXm, Earth leakage circuit breaker, 3P, 100 A at 40 °C, 16 kA at 415 V AC, MicroLogic 4.1 electronic trip unit, EN/IEC 60947-2.

Schneider Electric C11E34V100B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11E34V100B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11E34V100B — Electrical Ratings
ParameterValue
Rated current (In)100 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11E34V100B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160E
C11E34V100B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C11E34V100B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11E34V100B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The MicroLogic 4.1 electronic trip unit provides adjustable thermal-magnetic curves (not just fixed thermal), which gives better coordination with downstream loads than a thermal-magnetic-only breaker. The earth-leakage sensitivity is selectable from 30 mA to 5 A, class A or AC — 30 mA class A is the standard for personnel protection in most IEC markets; higher settings are for equipment protection or to avoid nuisance tripping on leakage-heavy loads.

This is a panel-mount distribution breaker for commercial and industrial switchboards. It mounts on a backplate, accepts front-connect compression lugs or busbars, and occupies 9 module pitches (108 mm wide). The IP40 front face suits dry indoor enclosures; the IK07 impact rating means it withstands accidental tool strikes during panel wiring.
