Schneider Electric C11E34V100L — Residual Current Breakers (RCCB/RCBO)

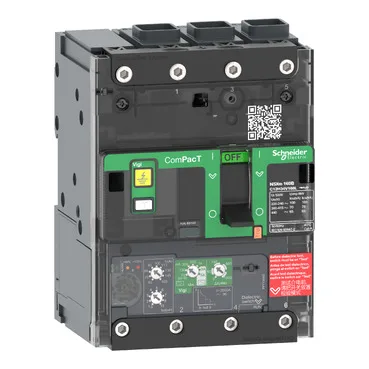

Schneider C11E34V100L ComPacT NSXm MCCB, 3-pole, 100 A, 25 kA

MPNC11E34V100L
Active

Schneider C11E34V100L Compact Nsxm, New Generation — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$640.50Ref. price · indicative, final on quote
Schneider Electric C11E34V100L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

C11E34V100L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11E34V100L — Electrical Ratings
ParameterValue
Rated current (In)100 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11E34V100L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160E
C11E34V100L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C11E34V100L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11E34V100L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

Overview

The C11E34V100L is a Schneider ComPacT NSXm molded case circuit breaker, 3-pole, rated 100 A at 40 °C with a 25 kA interrupting capacity at 440 V AC. It carries a MicroLogic 4.1 electronic trip unit and is built for distribution applications per EN/IEC 60947-2. This is an active current-series product, readily available through standard distribution channels.

The C11E34V100L is part of Schneider's current ComPacT NSXm generation and remains in active production. No end-of-life notification or phase-out has been announced for this order code. For BOM-freeze or line-down needs, an RFQ is the fastest path to confirm lead time and quantity.
