Schneider Electric C11E44V025B — Residual Current Breakers (RCCB/RCBO)

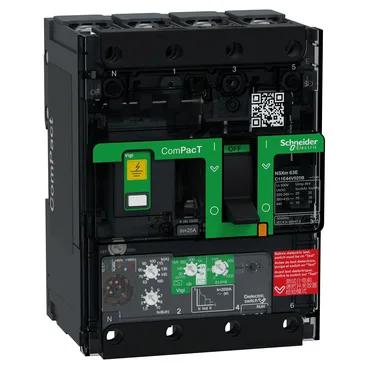

Schneider Electric C11E44V025B ComPacT NSXm MCCB, 25 A, 16 k

MPNC11E44V025B
Active

Schneider Electric ComPacT NSXm, MCCB, 25 A at 40 °C, 4P, electronic MicroLogic 4.1 trip unit, 16 kA at 415 V AC, IP40, grey (RAL 7016).

Schneider Electric C11E44V025B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11E44V025B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11E44V025B — Electrical Ratings
ParameterValue
Rated current (In)25 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11E44V025B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 63E
C11E44V025B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C11E44V025B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11E44V025B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

What this MCCB does and where it fits

The Schneider Electric C11E44V025B is a ComPacT NSXm moulded-case circuit breaker (MCCB) rated 25 A at 40 °C, with a 4-pole (4P) configuration and an electronic MicroLogic 4.1 trip unit. The electronic trip unit includes integrated earth-leakage protection with selectable sensitivity from 30 mA to 5 A, covering both class A and class AC residual current types. The toggle control and front-facing connections simplify panel wiring and manual operation.

The utilisation category A means it's not intended for frequent switching under load. Pollution degree 3 (IEC 60664-1) confirms it tolerates conductive pollution typical of industrial enclosures. Overvoltage category IV means it's rated for the main incoming supply, not just downstream sub-circuits.

Mounting and integration notes

Mounts on a backplate (not DIN rail) — horizontal or vertical, flat against the panel. The 108 mm width (12 x 9 mm pitches) and 144 mm height mean it occupies a standard MCCB footprint. Connection pitch is 35 mm with spreaders, 27 mm without — plan your busbar or lug layout accordingly. Both line and load connections are front-facing, compression lug or busbar. The grey (RAL 7016) housing is the standard industrial shade. The IK07 impact rating means it shrugs off light knocks during panel assembly.

Frequently asked questions

What is the breaking capacity of C11E44V025B?

16 kA at 415 V AC, performance level E.

What earth-leakage protection does this breaker have?

Integrated earth-leakage protection with selectable sensitivity: 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, or 5 A, for both class A and class AC residual currents.

Where can I buy C11E44V025B?

This part is sourced and quoted to order against an RFQ through independent distribution channels. Contact us with your quantity and target price to receive a current quote with confirmed availability and lead time.
