Schneider Electric C11E6TM032L — Miniature Circuit Breakers (MCB)

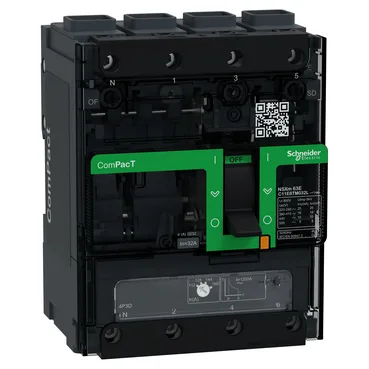

Schneider C11E6TM032L ComPacT NSXm 63E 4-pole 32 A MCCB

MPNC11E6TM032L
Active

Schneider ComPacT NSXm C11E6TM032L molded case circuit breaker, 4-pole, 32 A, 25 kA Icu at 415 V AC, thermal-magnetic TM-D trip unit, 690 V AC, fixed mount, EN/IEC 60947-2.

$425.20Ref. price · indicative, final on quote
Schneider Electric C11E6TM032L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

C11E6TM032L — Identification
ParameterValue
Product nameComPacT NSXm
Product rangeComPacT
Product/component typeCircuit breaker
Device applicationDistribution
C11E6TM032L — Ratings
ParameterValue
Rated current (In)32 A at 40 °C
Poles configuration4P
Rated operational voltage (Ue)690 V AC 50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Network type (AC/DC)AC
Network frequency50/60 Hz
Utilisation categoryCategory A
Overvoltage categoryIII
C11E6TM032L — Protection
ParameterValue
Trip unit technologyThermal-magnetic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to IEC 60947-2
Electrical durability (cycles)20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In
Mechanical durability (cycles)20000 cycles
C11E6TM032L — Mechanical
ParameterValue
Mounting supportBackplate
Control typeToggle
Local signalling/indicationFlag (green) for presence of auxiliary contacts
Number of 9 mm pitches12 module
C11E6TM032L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-50...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
C11E6TM032L — Approvals
ParameterValue
StandardsEN/IEC 60947-2
C11E6TM032L — Electrical
ParameterValue
[Icu] rated ultimate short-circuit breaking capacity25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity25 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
C11E6TM032L — Specifications
ParameterValue
[Ir] long-time protection pick-up adjustment range0.7...1 x In
Trip unit protection functionsLI

Product details

Overview

The C11E6TM032L is a Schneider ComPacT NSXm 63E molded case circuit breaker with 4 poles, rated 32 A at 40 °C and a breaking capacity Icu of 25 kA at 415 V AC. It uses a thermal-magnetic TM-D trip unit and is designed for fixed mounting in distribution applications per EN/IEC 60947-2. This part is in active production.

Schneider lists the C11E6TM032L as an active, current-production part within the ComPacT NSXm range.
