Schneider Electric C11E6TM050L — Miniature Circuit Breakers (MCB)

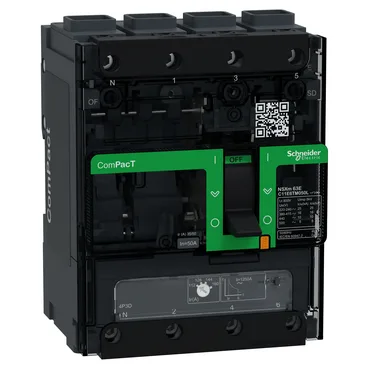

Schneider Electric C11E6TM050L ComPacT NSXm 50A 4P 16kA MCCB

MPNC11E6TM050L
Active

Schneider Electric ComPacT NSXm, C11E6TM050L, 4P MCCB, 50 A (40 °C), TM-D trip, 16 kA at 415 V AC, EN/IEC 60947-2.

Schneider Electric C11E6TM050L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11E6TM050L — Identification
ParameterValue
Product nameComPacT NSXm
Product rangeComPacT
Product/component typeCircuit breaker
Device applicationDistribution
C11E6TM050L — Ratings
ParameterValue
Rated current (In)50 A at 40 °C
Poles configuration4P
Rated operational voltage (Ue)690 V AC 50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Network type (AC/DC)AC
Network frequency50/60 Hz
Utilisation categoryCategory A
Overvoltage categoryIII
C11E6TM050L — Protection
ParameterValue
Trip unit technologyThermal-magnetic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to IEC 60947-2
Electrical durability (cycles)20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In
Mechanical durability (cycles)20000 cycles
C11E6TM050L — Mechanical
ParameterValue
Mounting supportBackplate
Control typeToggle
Local signalling/indicationFlag (green) for presence of auxiliary contacts
Number of 9 mm pitches12 module
C11E6TM050L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-50...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
C11E6TM050L — Approvals
ParameterValue
StandardsEN/IEC 60947-2
C11E6TM050L — Electrical
ParameterValue
[Icu] rated ultimate short-circuit breaking capacity25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity25 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
C11E6TM050L — Specifications
ParameterValue
[Ir] long-time protection pick-up adjustment range0.7...1 x In
Trip unit protection functionsLI

Product details

ComPacT NSXm 50 A MCCB — sourcing note

The Schneider Electric C11E6TM050L is a ComPacT NSXm moulded-case circuit breaker, 4-pole (4P), rated 50 A at 40 °C with a TM-D thermal-magnetic trip unit. It's designed for distribution duty (Category A) per EN/IEC 60947-2, and carries an isolation suitability mark.

The TM-D trip unit combines a thermal bimetal for overload protection and a magnetic coil for short-circuit protection — no electronic adjustment, so what you see on the nameplate is what you get. Pollution degree 3 (IEC 60664-1) means it's rated for conductive pollution environments typical of industrial control panels.

Lifecycle stage is current. Standards compliance includes EN/IEC 60947-2, isolation suitability per that standard, and overvoltage category III.

Frequently asked questions

What standards does C11E6TM050L comply with?

EN/IEC 60947-2 for circuit-breaker performance, with isolation suitability per that standard. Pollution degree 3 per IEC 60664-1 and overvoltage category III.

What wire sizes does the C11E6TM050L accept?

Everlink lugs accept 2.5–95 mm² rigid or stranded aluminium/copper, and 2.5–70 mm² flexible copper.
