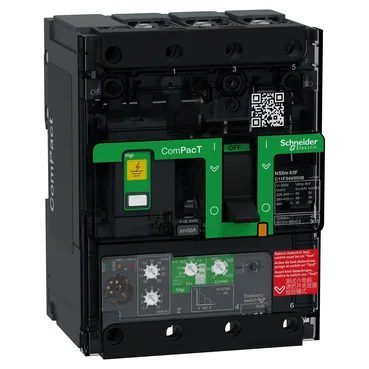

Schneider Electric C11F34V050B — Residual Current Breakers (RCCB/RCBO)

C11F34V050B ComPacT NSXm 50A 3P MCCB, 36kA 415V AC

MPNC11F34V050B
Active

Schneider Electric ComPacT NSXm, 3P, 50 A, 36 kA 415 V AC, MicroLogic 4.1 electronic trip unit, integrated earth leakage, Grey (RAL 7016).

$1,376.46Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11F34V050B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11F34V050B — Electrical Ratings
ParameterValue
Rated current (In)50 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11F34V050B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 63F
C11F34V050B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C11F34V050B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11F34V050B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

Above that, you derate. Integrated earth-leakage protection is built in, with adjustable sensitivity from 30 mA up to 5 A, covering both Class A and Class AC detection. That saves a separate RCD module and the wiring to it — one less thing to fit on the DIN rail.

Mounts on a backplate — not DIN-rail — so it's a bolt-down install. 108 mm wide, 144 mm high, 80 mm deep, taking 9 module pitches. Front connections top and bottom accept compression lugs or busbars; the 35 mm connection pitch with spreaders (27 mm without) matches standard busbar systems. The grey RAL 7016 colour is the standard industrial finish.

Frequently asked questions

What is the breaking capacity of C11F34V050B?

36 kA at 415 V AC, F performance level per EN/IEC 60947-2. That's the maximum fault current it can interrupt at that voltage without damage.

Does C11F34V050B have built-in earth leakage protection?

Yes, integrated earth-leakage protection with adjustable sensitivity from 30 mA to 5 A, covering both Class A and Class AC detection. No separate RCD module needed.

What trip unit does C11F34V050B use?

A MicroLogic 4.1 electronic trip unit rated 50 A at 40 °C. It includes thermal memory (20 minutes before and after tripping) to prevent nuisance re-trips on hot reclosure.

Where can I buy C11F34V050B and get current pricing?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm position.
