Schneider Electric C11F34V050L — Residual Current Breakers (RCCB/RCBO)

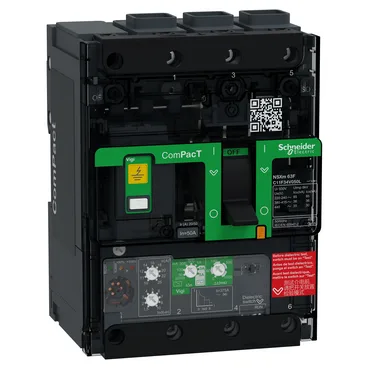

Schneider Electric C11F34V050L ComPacT NSXm 3P 50A Earth Lea

MPNC11F34V050L
Active

Schneider Electric ComPacT NSXm, 3P, 50 A, 36 kA at 415 V AC, earth leakage circuit breaker, MicroLogic 4.1 electronic trip, grey (RAL 7016).

$762.36Ref. price · indicative, final on quote
Schneider Electric C11F34V050L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11F34V050L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11F34V050L — Electrical Ratings
ParameterValue
Rated current (In)50 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11F34V050L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 63F
C11F34V050L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C11F34V050L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11F34V050L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The Schneider Electric C11F34V050L is a ComPacT NSXm earth leakage circuit breaker, 3-pole, rated 50 A at 40 °C with a MicroLogic 4.1 electronic trip unit.

It's 9 module pitches wide (108 mm), 144 mm tall, 80 mm deep — fits a standard distribution board. IP40 front means it's fine inside a clean panel; IK07 says it takes a light knock during installation. The Everlink terminals accept 2.5 to 70 mm² fine-stranded copper or 2.5 to 95 mm² rigid aluminium/copper, so you can land a fat feeder without a reducer.

Earth leakage built in

Integrated earth-leakage protection with selectable sensitivity: 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, or 5 A for class AC; 30 mA through 1 A for class A. That covers everything from personnel protection (30 mA) to feeder leakage on a long cable run (5 A). The trip unit is electronic, so it's more precise than a thermal-magnetic on the leakage side — especially useful where nuisance tripping from inrush is a concern.

Frequently asked questions

What standards does C11F34V050L comply with?

It complies with EN/IEC 60947-2, pollution degree 3 per IEC 60664-1, and overvoltage category IV.

What is the breaking capacity of C11F34V050L?

Performance level F: 36 kA at 415 V AC. That's the short-circuit breaking capacity under EN/IEC 60947-2.

What earth-leakage sensitivities are available on this breaker?

Selectable: 30 mA, 100 mA, 300 mA, 500 mA, 1 A for class A; plus 3 A and 5 A for class AC. The trip unit handles both sinusoidal and pulsed DC leakage currents.

Where can I buy C11F34V050L?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing confirmed at quote time.
