Schneider Electric C11F44V100L — Residual Current Breakers (RCCB/RCBO)

Schneider Electric C11F44V100L ComPacT NSXm MCCB, 100 A, 36

MPNC11F44V100L
Active

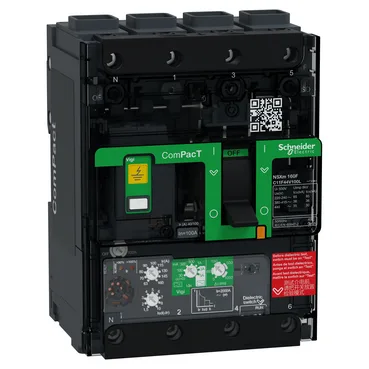

Schneider Electric ComPacT NSXm, C11F44V100L, 4P MCCB, 100 A at 40 °C, 36 kA at 415 V AC, MicroLogic 4.1 electronic trip unit, integrated earth-leakage protection, IP40, grey (RAL 7016).

$789.35 – $842.94Ref. price · indicative, final on quote
Schneider Electric C11F44V100L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11F44V100L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11F44V100L — Electrical Ratings
ParameterValue
Rated current (In)100 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11F44V100L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160F
C11F44V100L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C11F44V100L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11F44V100L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The C11F44V100L is a Schneider Electric ComPacT NSXm moulded-case circuit breaker (MCCB) rated 100 A at 40 °C with a 36 kA breaking capacity at 415 V AC — that interrupting rating tells you it can clear a fault up to 36 kA without welding contacts or rupturing the case, which is the deciding number for panel coordination studies under EN/IEC 60947-2. The 4P (four-pole) construction with the neutral on the left covers three-phase plus neutral distribution applications where you need to switch and protect all four conductors.

Deployment context

The Everlink lugs accept 2.5 to 95 mm² rigid or stranded copper or aluminium on the line side, 2.5 to 70 mm² fine-stranded copper on the load side, so you can land the feeder and downstream conductors without adapters. IP40 enclosure protection means it is suited for indoor panel installation where dust ingress is controlled; the IK07 impact rating handles incidental tool contact during maintenance.

MPN
C11F44V100L
