Schneider Electric C11H34V025B — Residual Current Breakers (RCCB/RCBO)

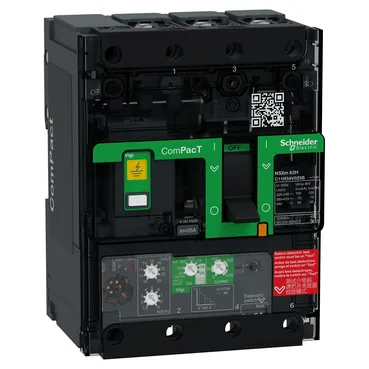

Schneider Electric C11H34V025B ComPacT NSXm MCCB, 25 A, 70 k

MPNC11H34V025B
Active

Schneider Electric ComPacT NSXm, 3P MCCB, 25 A at 40 °C, 70 kA at 415 V AC, MicroLogic 4.1 electronic trip, integrated earth-leakage protection, grey (RAL 7016).

$1,369.44Ref. price · indicative, final on quote
Schneider Electric C11H34V025B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11H34V025B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11H34V025B — Electrical Ratings
ParameterValue
Rated current (In)25 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11H34V025B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 63H
C11H34V025B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C11H34V025B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11H34V025B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The C11H34V025B is a Schneider Electric ComPacT NSXm moulded-case circuit breaker (MCCB) with a MicroLogic 4.1 electronic trip unit, rated 25 A at 40 °C. This is a current-production part, actively sourced through distribution.

Integrated earth-leakage protection

This MCCB includes built-in earth-leakage protection, adjustable from 30 mA up to 5 A, for both class A and class AC residual currents. That saves a separate RCCB module on the DIN rail — one device handles both overcurrent and ground-fault protection. The 9-module pitch (9 x 9 mm = 81 mm width) fits standard DIN-rail enclosures; backplate mounting, horizontal or vertical, flat against the panel.

Physical fit and connections

Dimensions: 108 mm wide, 144 mm high, 80 mm deep. Front-connected terminals accept compression lugs or busbars. Connection pitch: 35 mm with spreaders, 27 mm without. IP40 enclosure protection, IK07 impact resistance.

Frequently asked questions

How do I get current pricing and availability for C11H34V025B?

Submit an RFQ through this listing. Pricing and stock are confirmed at quote time through independent distribution; no public price or live stock count is published here.

What is the breaking capacity of C11H34V025B?

70 kA at 415 V AC, H performance level, per EN/IEC 60947-2. That is the maximum short-circuit current it can safely interrupt at that voltage.

What compliance documentation does this breaker provide?

It is certified to EN/IEC 60947-2. The manufacturer provides RoHS and REACH declarations on request through the standard documentation portal.

MPN
C11H34V025B
