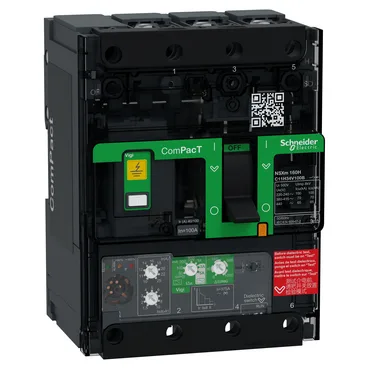

Schneider Electric C11H34V100B — Residual Current Breakers (RCCB/RCBO)

Schneider Electric C11H34V100B ComPacT NSXm MCCB, 100 A, 70

MPNC11H34V100B
Active

Schneider Electric ComPacT NSXm, C11H34V100B, 3P MCCB with MicroLogic 4.1 electronic trip, 100 A at 40 °C, 70 kA at 415 V AC, integrated earth-leakage protection.

$1,523.34Ref. price · indicative, final on quote
Schneider Electric C11H34V100B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11H34V100B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11H34V100B — Electrical Ratings
ParameterValue
Rated current (In)100 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11H34V100B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160H
C11H34V100B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C11H34V100B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11H34V100B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The C11H34V100B is a 3-pole ComPacT NSXm moulded-case circuit breaker with a MicroLogic 4.1 electronic trip unit rated 100 A at 40 °C. The electronic trip includes integrated earth-leakage protection, selectable from 30 mA to 5 A in class A or AC, which saves a separate RCCB module and one DIN space.

Backplate-mounted, 9-module pitch (144 mm tall, 108 mm wide, 80 mm deep). The connection pitch is 35 mm with spreaders, 27 mm without — standard for busbar or compression-lug termination. IP40 front face, IK07 impact resistance; fine for enclosed distribution boards but not for washdown zones. The toggle control and front-flagged auxiliary-contact indicator (green flag) make panel walk-throughs faster — you see the contact state without opening the door.

Frequently asked questions

What is the breaking capacity of C11H34V100B?

70 kA at 415 V AC, IEC 60947-2, H performance class.

Does C11H34V100B include earth-leakage protection?

Yes, integrated earth-leakage protection is built into the MicroLogic 4.1 trip unit, selectable from 30 mA to 5 A in class A or AC.

Where can I buy C11H34V100B?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing confirmed at quote time.
