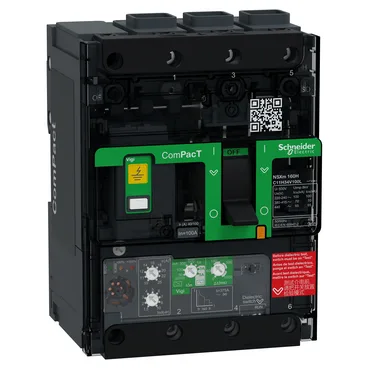

The Schneider Electric C11H34V100L is a ComPacT NSXm 3-pole MCCB rated 100 A at 40 °C with an H-performance breaking capacity of 70 kA at 415 V AC. It carries the MicroLogic 4.1 electronic trip unit with integrated earth-leakage protection, configurable from 30 mA up to 5 A for class A or class AC faults. That earth-leakage integration saves a separate RCCB module in the panel — one device, one DIN-rail slot, one wiring pass.
That's an H (high) performance level, sized for main distribution boards with high available fault current. The electronic MicroLogic 4.1 trip unit gives adjustable long-time, short-time, and instantaneous protection, plus the earth-leakage element — so you coordinate selectivity downstream without swapping trip units.
Where it goes in the panel
Mounts on a backplate in horizontal or vertical orientation — flat against the panel back. Front-facing terminals top and bottom, Everlink lugs accepting 2.5–95 mm² rigid or stranded copper/aluminium. The 9-module pitch (108 mm wide) fits standard DIN-rail enclosures; 80 mm depth leaves room for cable bending. IP40 front face, IK07 impact rating.
