Schneider Electric C11H44V025B — Residual Current Breakers (RCCB/RCBO)

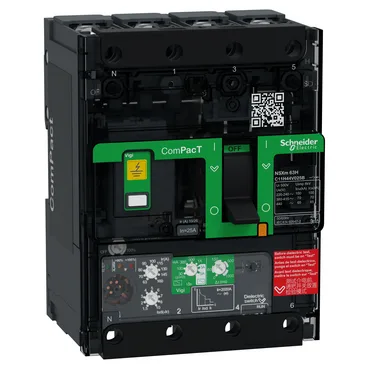

C11H44V025B ComPacT NSXm MCCB, 25A, 4P, 70kA, MicroLogic 4.1

MPNC11H44V025B
Active

Schneider Electric ComPacT NSXm MCCB, C11H44V025B, 25A at 40°C, 4P, 70kA at 415V AC, MicroLogic 4.1 electronic trip unit, integrated earth-leakage protection, IP40, grey RAL 7016.

$1,549.80Ref. price · indicative, final on quote
Schneider Electric C11H44V025B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11H44V025B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11H44V025B — Electrical Ratings
ParameterValue
Rated current (In)25 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11H44V025B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 63H
C11H44V025B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C11H44V025B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11H44V025B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

MCCB for distribution panels — 25 A, 4P, 70 kA breaking capacity

The MicroLogic 4.1 electronic trip unit provides adjustable thermal memory (20 minutes before and after tripping) and integrated earth-leakage protection with selectable sensitivity from 30 mA to 5 A (class A and AC). That eliminates the need for a separate earth-leakage relay in most distribution boards — one device, one DIN-rail footprint. Rated to EN/IEC 60947-2, pollution degree 3, overvoltage category IV. IP40 front face, IK07 impact resistance.

Width 108 mm (12 module pitches of 9 mm), depth 80 mm, height 144 mm. Front-connect terminals accept compression lugs or busbars; connection pitch is 35 mm with spreaders, 27 mm without. Neutral on the left. Toggle control, local signalling flag for auxiliary contacts. Fits standard backplate mounting — no DIN rail adapter needed.

Frequently asked questions

Where can I buy C11H44V025B and get a price?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.

What is the breaking capacity of C11H44V025B?

70 kA at 415 V AC (performance level H), certified to EN/IEC 60947-2. That is the maximum fault current it can safely interrupt at that voltage.

Does the C11H44V025B include earth-leakage protection?

Yes, integrated earth-leakage protection is built into the MicroLogic 4.1 trip unit. Sensitivity is selectable from 30 mA to 5 A for both class A and class AC leakage types.

What compliance documentation is available for C11H44V025B?

The breaker is certified to EN/IEC 60947-2, pollution degree 3 per IEC 60664-1, overvoltage category IV. IP40 and IK07 per IEC 60529 and IEC 62262. Standard Schneider documentation (declaration of conformity, CE, UKCA, EAC) is available on request.
