Schneider Electric C11H44V050L — Residual Current Breakers (RCCB/RCBO)

Schneider C11H44V050L ComPacT NSXm MCCB, 50A, 70kA 415V AC

MPNC11H44V050L
Active

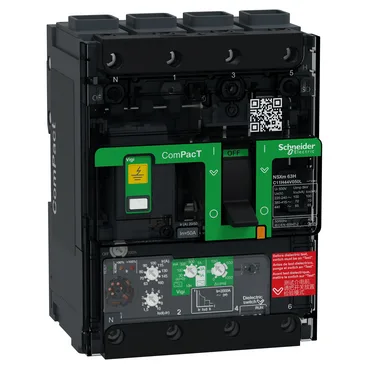

Schneider Electric ComPacT NSXm, C11H44V050L, MCCB, 4P, 50 A at 40 °C, 70 kA 415 V AC, MicroLogic 4.1 electronic trip unit, integrated earth-leakage protection, IP40.

$847.80 – $1,635.66Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11H44V050L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11H44V050L — Electrical Ratings
ParameterValue
Rated current (In)50 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11H44V050L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 63H
C11H44V050L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C11H44V050L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11H44V050L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The Schneider Electric C11H44V050L is a ComPacT NSXm 4-pole MCCB rated 50 A at 40 °C with a 70 kA breaking capacity at 415 V AC. It carries integrated earth-leakage protection with selectable sensitivity from 30 mA up to 5 A for both class A and class AC faults. That means one device handles both overcurrent and ground-fault protection — no separate RCCB needed downstream, which saves a module width on the DIN rail and simplifies the wiring bill.

The 4-pole body takes 12 module pitches at 9 mm each — 108 mm wide total — so plan for that footprint in the enclosure layout. Connection is front-facing on both line and load sides via Everlink lugs that accept 2.5 to 95 mm² rigid copper or aluminum, or 2.5 to 70 mm² fine-stranded copper. The neutral is on the left.

Frequently asked questions

Where can I buy C11H44V050L and get a price?

The C11H44V050L is sourced to order against an RFQ through independent distribution. Submit a request for quote (RFQ) to confirm current availability and pricing.

What are the key ratings for C11H44V050L?

Rated 50 A at 40 °C continuous, 70 kA breaking capacity at 415 V AC, 4-pole, with MicroLogic 4.1 electronic trip unit and integrated earth-leakage protection adjustable from 30 mA to 5 A.

What compliance documentation does Schneider provide for C11H44V050L?

The breaker is certified to EN/IEC 60947-2, rated for pollution degree 3 per IEC 60664-1, overvoltage category IV, and carries IK07 impact protection and IP40 ingress protection. Manufacturer documentation includes the standard declaration of conformity and test certificates for the listed standards.
