Schneider Electric C11H44V100L — Residual Current Breakers (RCCB/RCBO)

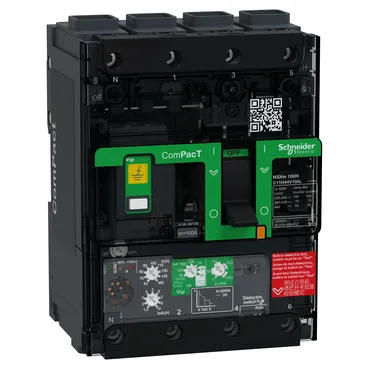

Schneider C11H44V100L ComPacT NSXm MCCB, 4-pole, 100 A, 440 V AC, 100 kA

Name: C11H44V100L
Brand: Schneider Electric
SKU: C11H44V100L
Availability: LimitedAvailability

MPNC11H44V100L

Active

Schneider C11H44V100L Compact Nsxm, New Generation — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$861.35 – $899.64Ref. price · indicative, final on quote

Request quote

Schneider Electric C11H44V100L datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsListing updated Jun 2026

Specifications

Residual Current Protection

C11H44V100L — Residual Current Protection
Parameter	Value
Earth-leakage sensitivity (IΔn)	30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / type	Class A Class AC
Trip unit technology	Electronic
Local signalling / indication	Flag (green) for presence of auxiliary contacts

Electrical Ratings

C11H44V100L — Electrical Ratings
Parameter	Value
Rated current (In)	100 A at 40 °C
Rated operational voltage (Ue)	440 V AC 50/60 Hz
Poles description	4P
Neutral pole position	Left
Network type	AC
Network frequency	50/60 Hz
Rated insulation voltage (Ui)	500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)	8 kV
Overvoltage category	IV
Electrical durability	20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)	20000 cycles

Identification

C11H44V100L — Identification
Parameter	Value
Product name	ComPacT NSXm
Product / component type	Earth leakage circuit breaker
Product range / family	ComPacT
Device short name	NSXm 160H

Mechanical

C11H44V100L — Mechanical
Parameter	Value
Mounting support	Backplate
Mounting position	Horizontal and vertical Flat on the back
Control type	Toggle
Width in 9 mm modules	12 module

Environmental

C11H44V100L — Environmental
Parameter	Value
Operating ambient temperature	-25...70 °C
Storage ambient temperature	-40...85 °C
IP degree of protection	IP40 conforming to IEC 60529
Pollution degree	3 conforming to IEC 60664-1
Relative humidity	0...95 %
Operating altitude	2000 m without derating 5000 m with derating

Approvals

C11H44V100L — Approvals
Parameter	Value
Standards	EN/IEC 60947-2

Product details

Overview

The C11H44V100L is a Schneider ComPacT NSXm molded case circuit breaker rated 100 A at 440 V AC with a 100 kA breaking capacity. It carries 4 poles, a MicroLogic 4.1 electronic trip unit, and a fixed mounting configuration. The part is designed for distribution applications and complies with EN/IEC 60947-2.

Lifecycle & availability

Schneider lists the C11H44V100L as an active part within the ComPacT NSXm range. It is compliant with EN/IEC 60947-2 and rated for pollution degree 3 per IEC 60664-1. For current lead time and pricing, submit an RFQ.
