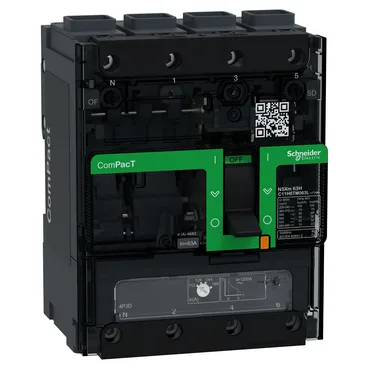

Schneider ComPacT NSXm C11H6TM063L molded case circuit breaker, 4-pole, 63 A, TM-D thermal-magnetic trip unit, 100 kA IC at 415 V AC, 690 V AC, fixed mount, toggle control, active production.
| Parameter | Value |
|---|---|
| Product / component type | Circuit breaker |
| Device application | Distribution |
| Parameter | Value |
|---|---|
| [In] rated current | 63 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| Parameter | Value |
|---|---|
| Poles description | 4P |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Device short name | NSXm 63H |
| Standards | EN/IEC 60947-2 |
The C11H6TM063L is a Schneider ComPacT NSXm molded case circuit breaker with 4 poles, rated 63 A at 40 °C, and a TM-D thermal-magnetic trip unit. It delivers a breaking capacity of 100 kA at 415 V AC (H rating) and operates on a 690 V AC network at 60 Hz. The breaker is in active production and available for sourcing.
