Schneider C11H6TM100L Compact Nsxm, New Generation — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
| Parameter | Value |
|---|---|
| Product / component type | Circuit breaker |
| Device application | Distribution |
| Parameter | Value |
|---|---|
| [In] rated current | 100 A at 40 °C |
| [Ue] rated operational voltage | 440 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| Parameter | Value |
|---|---|
| Poles description | 4P |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Device short name | NSXm 160H |
| Standards | EN/IEC 60947-2 |

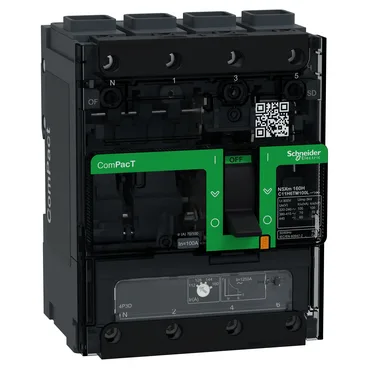

The C11H6TM100L is a Schneider ComPacT NSXm 160H molded-case circuit breaker with 4 poles, rated 100 A at 40 °C and a breaking capacity of 100 kA at 440 V AC. It uses a TM-D thermal-magnetic trip unit and is designed for fixed mounting with toggle control, compliant with EN/IEC 60947-2. This part is in active production.
