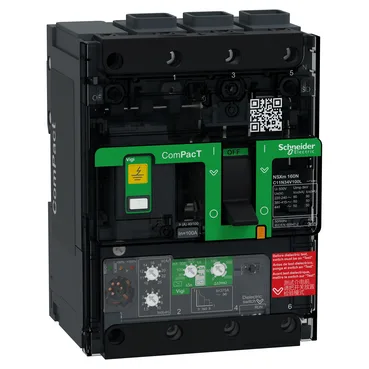

Schneider Electric C11N34V100L — Residual Current Breakers (RCCB/RCBO)

Schneider Electric C11N34V100L ComPacT NSXm MCCB, 100 A, 50

MPNC11N34V100L
Active

Schneider Electric ComPacT NSXm, 3P, 100 A at 40 °C, 50 kA at 415 V AC, MicroLogic 4.1 electronic trip unit, integrated earth-leakage protection, EN/IEC 60947-2.

$782.16Ref. price · indicative, final on quote
Schneider Electric C11N34V100L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11N34V100L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11N34V100L — Electrical Ratings
ParameterValue
Rated current (In)100 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11N34V100L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160N
C11N34V100L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C11N34V100L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11N34V100L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The C11N34V100L is a Schneider Electric ComPacT NSXm molded-case circuit breaker (MCCB) with an electronic MicroLogic 4.1 trip unit rated 100 A at 40 °C. This is a 3-pole, 50/60 Hz breaker built for distribution duty (Category A utilisation). It includes integrated earth-leakage protection with selectable sensitivity from 30 mA up to 5 A, covering both class A and class AC leakage types. That makes it a combined MCCB + RCCB in one unit — saves a module of DIN-rail space compared to a separate breaker and residual-current device.

Ratings that matter for fit

Breaking capacity: 50 kA at 415 V AC. That's a strong rating for a 100 A frame; it sits above the typical 25–36 kA commercial range. Overvoltage category IV suits it for main distribution panels at the service entrance.

Mounting and connections

The 9-module pitch (9 x 9 mm = 81 mm width) matches the ComPacT NSXm footprint. Front-facing connections on both line and load sides; Everlink lugs accept 2.5 to 70 mm² fine-stranded copper or 2.5 to 95 mm² rigid aluminium/copper. IP40 front face (finger-safe) and IK07 impact rating. The grey (RAL 7016) housing is standard for Schneider's ComPacT line. A green flag on the front signals presence of auxiliary contacts.

Frequently asked questions

What is the breaking capacity of C11N34V100L?

50 kA at 415 V AC (performance level N). That's the interrupting rating under EN/IEC 60947-2.

Does C11N34V100L include earth-leakage protection?

Yes, it has integrated earth-leakage protection with selectable sensitivity: 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, or 5 A for both class A and class AC leakage types.

Where can I buy C11N34V100L?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
