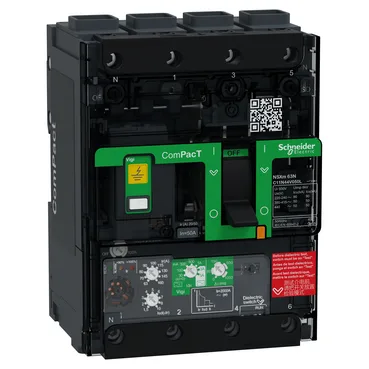

Schneider Electric C11N44V050L — Residual Current Breakers (RCCB/RCBO)

Schneider Electric C11N44V050L ComPacT NSXm MCCB, 50 A, 50 k

MPNC11N44V050L
Active

Schneider Electric ComPacT NSXm, 4P, 50 A, 50 kA at 415 V AC, MicroLogic 4.1 electronic trip unit, integrated earth-leakage protection, grey (RAL 7016).

$793.84 – $835.65Ref. price · indicative, final on quote
Schneider Electric C11N44V050L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11N44V050L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11N44V050L — Electrical Ratings
ParameterValue
Rated current (In)50 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11N44V050L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 63N
C11N44V050L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C11N44V050L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11N44V050L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

MCCB for distribution — 50 A, 50 kA, electronic trip

The Schneider Electric C11N44V050L is a ComPacT NSXm moulded-case circuit breaker, 4-pole, rated 50 A at 40 °C with a MicroLogic 4.1 electronic trip unit. The electronic trip includes integrated earth-leakage protection, adjustable from 30 mA to 5 A for class A or class AC sensitivity, so it covers both personnel and equipment ground-fault needs in one device.

Mounts on a backplate, horizontally or vertically, flat on the back. The 9 mm pitch footprint takes 12 modules — 108 mm wide, 144 mm high, 80 mm deep. Front-facing connections top and bottom; Everlink lugs accept 2.5–95 mm² rigid or stranded copper/aluminium (fine stranded copper up to 70 mm²). Connection pitch is 35 mm with spreaders, 27 mm without. IP40 front face, IK07 impact resistance — suitable for enclosed panel installation where occasional contact is expected.

Mechanical durability matches at 20,000 cycles.

Frequently asked questions

What are the key ratings for C11N44V050L?

50 A continuous at 40 °C, 4-pole, 50 kA breaking capacity at 415 V AC (performance level N), electronic MicroLogic 4.1 trip unit with integrated earth-leakage protection adjustable from 30 mA to 5 A.

What standards does C11N44V050L comply with?

It is certified to EN/IEC 60947-2, pollution degree 3 per IEC 60664-1, overvoltage category IV. IP40 front face, IK07 impact rating.

Where can I buy C11N44V050L and how is it quoted?

We supply this part through independent distribution. Submit an RFQ with your quantity and target price — we confirm availability and current pricing at quote time.
