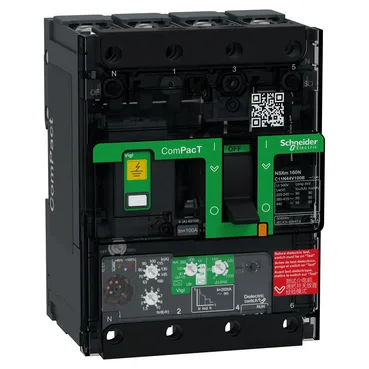

Schneider Electric C11N44V100B — Residual Current Breakers (RCCB/RCBO)

C11N44V100B ComPacT NSXm 100A 4P MCCB, 50 kA 415V AC

MPNC11N44V100B
Active

Schneider Electric ComPacT NSXm, C11N44V100B, 4P MCCB, 100 A at 40 °C, MicroLogic 4.1 electronic trip unit, 50 kA 415 V AC, integrated earth-leakage protection, grey (RAL 7016).

Schneider Electric C11N44V100B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11N44V100B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11N44V100B — Electrical Ratings
ParameterValue
Rated current (In)100 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11N44V100B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160N
C11N44V100B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C11N44V100B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11N44V100B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

Integrator's spec recap

The C11N44V100B is a Schneider Electric ComPacT NSXm moulded-case circuit breaker, 4-pole, rated 100 A at 40 °C with a MicroLogic 4.1 electronic trip unit. The integrated earth-leakage protection — selectable from 30 mA to 5 A, class A or AC — means this one device covers both overcurrent and ground-fault in a single panel cutout, saving a row of DIN-rail space versus a separate RCD.

If your enclosure runs hotter, the electronic trip unit automatically derates; no manual adjustment needed.

The 144 mm height × 108 mm width × 80 mm depth footprint fits standard distribution board cutouts. Connection is front-facing on both line and load sides, accepting compression lugs or busbars. The 35 mm connection pitch (27 mm without spreaders) matches common busbar systems. The IP40 front face and IK07 impact rating are adequate for enclosed panel use; not rated for washdown environments.

Frequently asked questions

Where can I buy C11N44V100B and how do I get a price?

This part is sourced and quoted to order against an RFQ through independent distribution. Submit an RFQ to receive current pricing and availability confirmation.

What is C11N44V100B's interrupting rating?

The performance level is N, rated 50 kA at 415 V AC per EN/IEC 60947-2.

What earth-leakage protection does this breaker have?

Integrated earth-leakage protection with selectable sensitivity: 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, or 5 A, for both class A and class AC residual currents.

What compliance documentation does this brand provide for C11N44V100B?

The breaker is certified to EN/IEC 60947-2, with pollution degree 3 per IEC 60664-1 and overvoltage category IV. The manufacturer provides the standard declaration of conformity and test reports for the listed standards.
