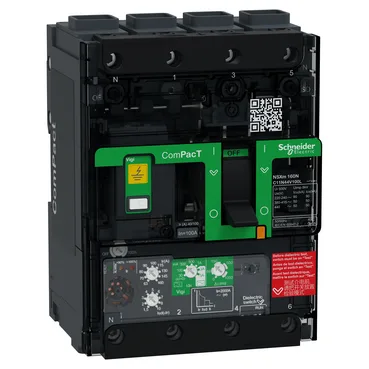

Schneider Electric C11N44V100L — Residual Current Breakers (RCCB/RCBO)

Schneider Electric C11N44V100L ComPacT NSXm MCCB, 100 A, 50

MPNC11N44V100L
Active

Schneider Electric ComPacT NSXm, C11N44V100L, 4P MCCB, 100 A at 40 °C, 50 kA breaking capacity at 415 V AC, MicroLogic 4.1 electronic trip unit, integrated earth-leakage protection, EN/IEC 60947-2.

$808.84 – $885.33Ref. price · indicative, final on quote
Schneider Electric C11N44V100L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11N44V100L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11N44V100L — Electrical Ratings
ParameterValue
Rated current (In)100 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11N44V100L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160N
C11N44V100L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C11N44V100L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11N44V100L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The C11N44V100L is a 4-pole ComPacT NSXm MCCB rated 100 A at 40 °C with a MicroLogic 4.1 electronic trip unit.

Integrated earth-leakage protection — one device, two functions

Unlike a standard MCCB that needs a separate RCCB or Vigi module, this unit integrates earth-leakage protection directly. Sensitivity is selectable across class A and class AC from 30 mA up to 5 A — so it handles both personnel protection (30 mA) and equipment/fire protection (300 mA to 5 A) in a single 12-module-wide footprint. That saves a DIN rail position and reduces wiring.

Mounts on a backplate in either horizontal or vertical orientation. The 12-module pitch (9 mm each) and 108 mm width fit standard DIN-rail enclosures. IP40 front face, IK07 impact resistance — suitable for enclosed distribution boards in dry indoor environments.

Frequently asked questions

What is C11N44V100L's breaking capacity?

50 kA at 415 V AC (performance level N) per EN/IEC 60947-2, which covers most industrial distribution applications.

What compliance standards does this MCCB meet?

EN/IEC 60947-2 for circuit-breakers, pollution degree 3 per IEC 60664-1, overvoltage category IV, and IP40 / IK07 protection.

Where can I buy C11N44V100L and how is it quoted?

Sourced and quoted to order against an RFQ through independent distribution; availability and current pricing confirmed at quote time.
