Schneider Electric C12E34V160B — Residual Current Breakers (RCCB/RCBO)

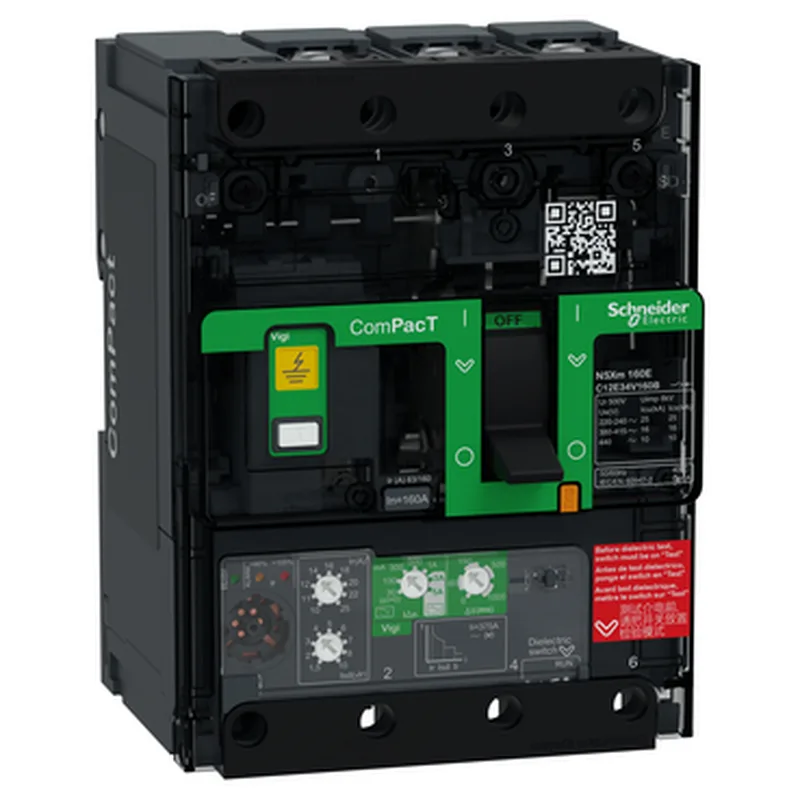

Schneider Electric C12E34V160B ComPacT NSXm 160A 3P MCCB, 16

MPNC12E34V160B
Active

Schneider Electric ComPacT NSXm, MCCB, 160 A at 40 °C, 3P, 16 kA at 415 V AC, MicroLogic 4.1 electronic trip unit, integrated earth leakage, grey (RAL 7016).

Schneider Electric C12E34V160B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C12E34V160B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C12E34V160B — Electrical Ratings
ParameterValue
Rated current (In)160 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C12E34V160B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160E
C12E34V160B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C12E34V160B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C12E34V160B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The Schneider Electric C12E34V160B is a ComPacT NSXm moulded-case circuit breaker (MCCB) rated 160 A at 40 °C with 3 poles and a 16 kA breaking capacity at 415 V AC (performance level E). It uses a MicroLogic 4.1 electronic trip unit with integrated earth-leakage protection, configurable for Class A or Class AC sensitivity from 30 mA up to 5 A. This makes it a distribution MCCB for panelboards and sub-distribution boards where both overcurrent and earth-fault protection are required in a single device.

Above 40 °C the thermal-magnetic curve derates; the electronic trip unit compensates automatically within its design range. The 3-pole configuration (3P) switches all three phases; for a 3-phase 4-wire system you would need a 4-pole variant. The integrated earth-leakage protection covers both Class A (pulsating DC) and Class AC (sinusoidal AC) fault types, with sensitivity settings from 30 mA (personnel protection) up to 5 A (equipment protection). This eliminates the need for a separate RCCB downstream, saving two modules of DIN space.

At 108 mm wide, 144 mm high, and 80 mm deep (9 module pitches), it fits standard distribution enclosures. IP40 protection (finger-safe) and IK07 impact resistance suit enclosed panel installation.
