Schneider Electric C12E44V160B — Residual Current Breakers (RCCB/RCBO)

Schneider Electric C12E44V160B ComPacT NSXm MCCB, 160 A, 16

MPNC12E44V160B
Active

Schneider Electric ComPacT NSXm, C12E44V160B, 4-pole MCCB, 160 A at 40 °C, 16 kA at 415 V AC, MicroLogic 4.1 electronic trip unit with integrated earth-leakage protection.

Schneider Electric C12E44V160B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C12E44V160B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C12E44V160B — Electrical Ratings
ParameterValue
Rated current (In)160 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C12E44V160B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160E
C12E44V160B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C12E44V160B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C12E44V160B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

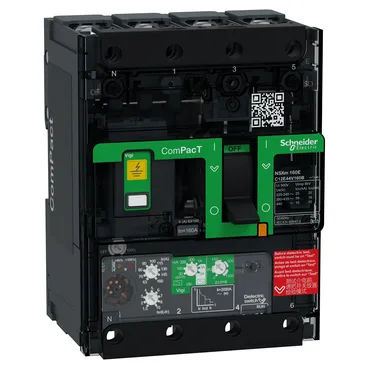

The Schneider Electric C12E44V160B is a 4-pole ComPacT NSXm moulded-case circuit breaker rated 160 A at 40 °C, with a 16 kA interrupting capacity at 415 V AC (performance level E). It carries an electronic MicroLogic 4.1 trip unit that integrates earth-leakage protection — selectable sensitivity from 30 mA to 5 A, class A or AC — so you can cover both overcurrent and ground-fault in one device without an add-on module. The 108 mm width and 144 mm height fit a 12-module pitch at 9 mm per module, so it occupies a predictable footprint in a standard panel layout.

Trip unit and protection detail

Earth-leakage sensitivity is field-selectable across 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, and 5 A for class A (pulsating DC) and class AC (sinusoidal AC) faults. This range lets you tune the ground-fault threshold to the load — 30 mA for personnel protection on a lighting subfeed, 300 mA or higher for equipment protection on a motor circuit.

Front-connect terminals accept compression lugs or busbars. Connection pitch is 35 mm with spreaders, 27 mm without. Auxiliary contact presence is indicated by a green flag on the front face. IP40 enclosure protection and IK07 impact resistance are standard for the panel environment.

Frequently asked questions

What is the breaking capacity of C12E44V160B?

Performance level E gives 16 kA at 415 V AC, 50/60 Hz, per IEC 60947-2.

What earth-leakage sensitivities are available on this MCCB?

The integrated earth-leakage protection is field-selectable: 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, or 5 A, for both class A (pulsating DC) and class AC (sinusoidal AC) fault types.

Where can I buy C12E44V160B and how is it quoted?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

MPN
C12E44V160B
