Schneider Electric C12E44V160L — Residual Current Breakers (RCCB/RCBO)

C12E44V160L ComPacT NSXm MCCB, 160 A, 4P, 16 kA

MPNC12E44V160L
Active

Schneider Electric ComPacT NSXm, MCCB, 160 A, 4P, 16 kA at 415 V AC, MicroLogic 4.1 electronic trip unit, EN/IEC 60947-2.

$741.95Ref. price · indicative, final on quote
Schneider Electric C12E44V160L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C12E44V160L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C12E44V160L — Electrical Ratings
ParameterValue
Rated current (In)160 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C12E44V160L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160E
C12E44V160L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C12E44V160L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C12E44V160L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

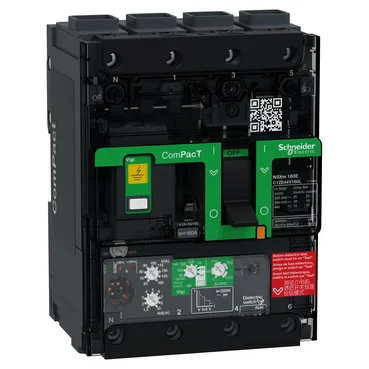

The Schneider Electric C12E44V160L is a ComPacT NSXm moulded-case circuit breaker rated 160 A at 40 °C, four-pole, with a MicroLogic 4.1 electronic trip unit and integrated earth-leakage protection. This is a current-production part.

If your enclosure runs hotter, you'll need to derate per the manufacturer's curve. The electronic MicroLogic 4.1 trip unit gives you adjustable thermal and magnetic protection curves, plus the integrated earth-leakage (Vigi) module with selectable sensitivity from 30 mA to 5 A, class A or AC — so it covers both personnel protection and equipment ground-fault on the same device.

Mounts on a backplate in horizontal or vertical orientation — flat on the back, no DIN-rail clip. It's 108 mm wide (12 module pitches at 9 mm), 144 mm tall, 80 mm deep. Connections are front-facing, top and bottom, via Everlink lugs that accept 2.5–95 mm² rigid or stranded copper/aluminium. The neutral is on the left.

Frequently asked questions

Where can I buy C12E44V160L and how do I get a price?

This part is sourced and quoted to order against an RFQ through independent distribution channels. Submit an RFQ for current availability and pricing — confirmed at quote time, not before.

What is C12E44V160L's listed range?

It belongs to the ComPacT NSXm range, a compact moulded-case circuit breaker family from Schneider Electric.
