Schneider Electric C12F34V160B — Residual Current Breakers (RCCB/RCBO)

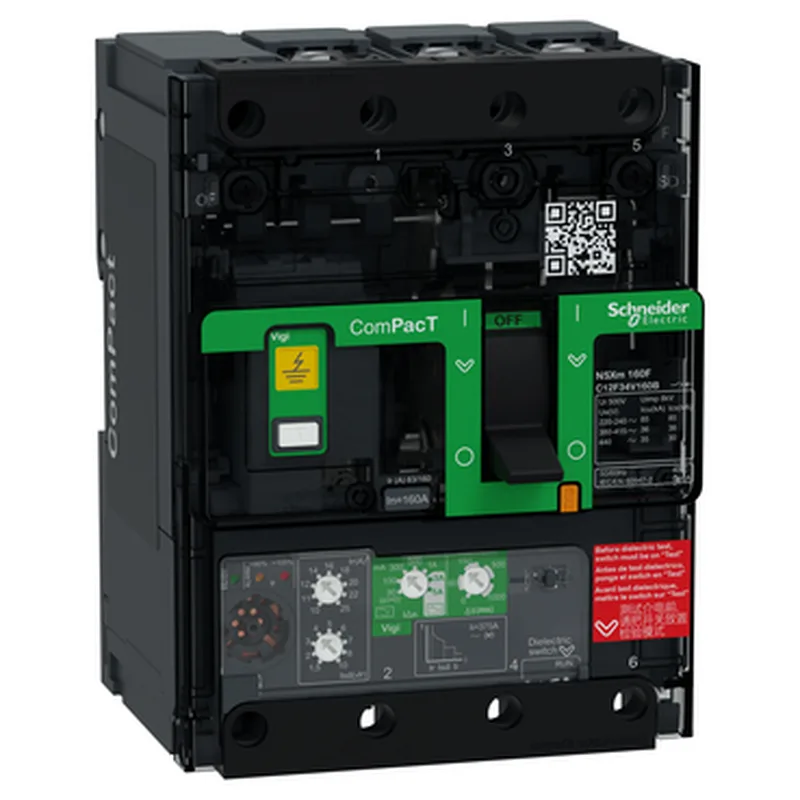

C12F34V160B ComPacT NSXm 160A 3P Earth Leakage Circuit Break

MPNC12F34V160B
Active

Schneider Electric ComPacT NSXm, C12F34V160B, 3P 160A MCCB with MicroLogic 4.1 electronic trip unit, 36 kA at 415 V AC, integrated earth-leakage protection.

Schneider Electric C12F34V160B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C12F34V160B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C12F34V160B — Electrical Ratings
ParameterValue
Rated current (In)160 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C12F34V160B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160F
C12F34V160B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C12F34V160B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C12F34V160B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

Panel-builder commissioning notes

The C12F34V160B is a Schneider Electric ComPacT NSXm 3-pole moulded-case circuit breaker (MCCB) rated 160 A at 40 °C with a MicroLogic 4.1 electronic trip unit. Built to EN/IEC 60947-2, this is a Category A utilisation device — meaning it is not specifically intended for motor-starting duty but for distribution applications where the breaker sees low-frequency switching. The electronic trip unit includes a 20-minute thermal memory that retains heat history before and after tripping, preventing reclosure onto an overloaded circuit that hasn't cooled. The 9-module pitch (144 mm height, 108 mm width, 80 mm depth) fits standard distribution panel cutouts.

Earth-leakage integration and selectivity

Unlike a standard MCCB that requires a separate earth-leakage module, the C12F34V160B integrates earth-leakage protection directly into the MicroLogic 4.1 trip unit. Sensitivity settings cover 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, and 5 A for both class A (pulsating DC) and class AC (sinusoidal AC) residual currents. This simplifies panel wiring and reduces enclosure space compared to a breaker-plus-module combination. For selectivity coordination downstream, the 20-minute thermal memory helps maintain time-current discrimination when a temporary overload trips the breaker and is reset before the thermal replica has fully reset. The electronic trip unit also supports zone-selective interlocking (ZSI) when paired with compatible upstream breakers, though this requires additional wiring between trip units.

IP40 front-face protection (IK07 impact resistance) suits the breaker for installation in enclosed distribution boards where tools or debris might strike the toggle. Operating altitude is 2000 m without derating, extending to 5000 m with derating applied. Ambient relative humidity range is 0–95 %, non-condensing. Mechanical durability is rated at 20,000 cycles; electrical durability at 20,000 cycles at rated current at 440 V, halving to 10,000 cycles at In/2. The grey (RAL 7016) toggle and housing are standard for the ComPacT NSXm range. A green flag on the front signals presence of auxiliary contacts, aiding quick visual checks during commissioning without opening the panel door.

Frequently asked questions

Who supplies C12F34V160B and how is it quoted for volume purchases?

The C12F34V160B is sourced through independent industrial-automation distribution channels. It is quoted to order against an RFQ; availability and current pricing are confirmed at the time of quotation.

What is the interrupting rating of C12F34V160B?

The C12F34V160B has a performance level F with an interrupting rating of 36 kA at 415 V AC, per EN/IEC 60947-2.

What earth-leakage sensitivity settings does the MicroLogic 4.1 trip unit offer?

The integrated earth-leakage protection offers selectable sensitivities of 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, and 5 A for both class A (pulsating DC) and class AC (sinusoidal AC) residual currents.

What compliance documentation does Schneider Electric provide for C12F34V160B?

The C12F34V160B is certified to EN/IEC 60947-2. Standard documentation includes a Declaration of Conformity for CE marking. RoHS and REACH compliance declarations are available from Schneider Electric upon request.
